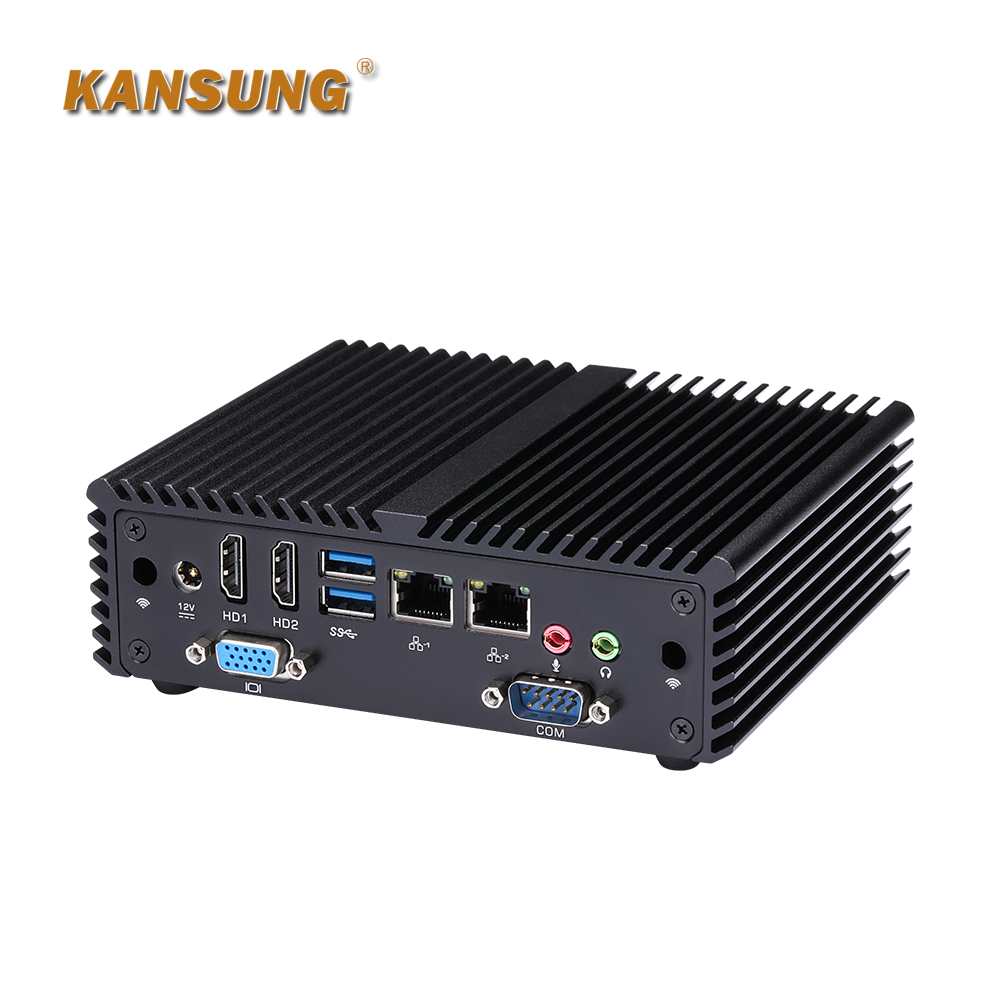

Triple Display Pentium J3710 Fanless Mini PC

Item Description

Model: K170P-S08

CPU: Intel Braswell SOC Pentium J3710 Quad Core Processor, 1.6GHz - 2.24GHz 2M Cache, Intel HD Graphics

CPU TDP: 6W

Memory: 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)

Storage: 1 x 2.5 inch HDD/SSD, 1 x Mini PCIe for mSata SSD

Audio: Realtek HD Audio

LAN Chipset: 2 x Realtek Gigabit LAN

OS Support: Windows 10, Linux etc.

Item Size: 156 x 127 x 48mm

Cooling Mode: Fanless

Material: Aluminum Alloy

Connectors

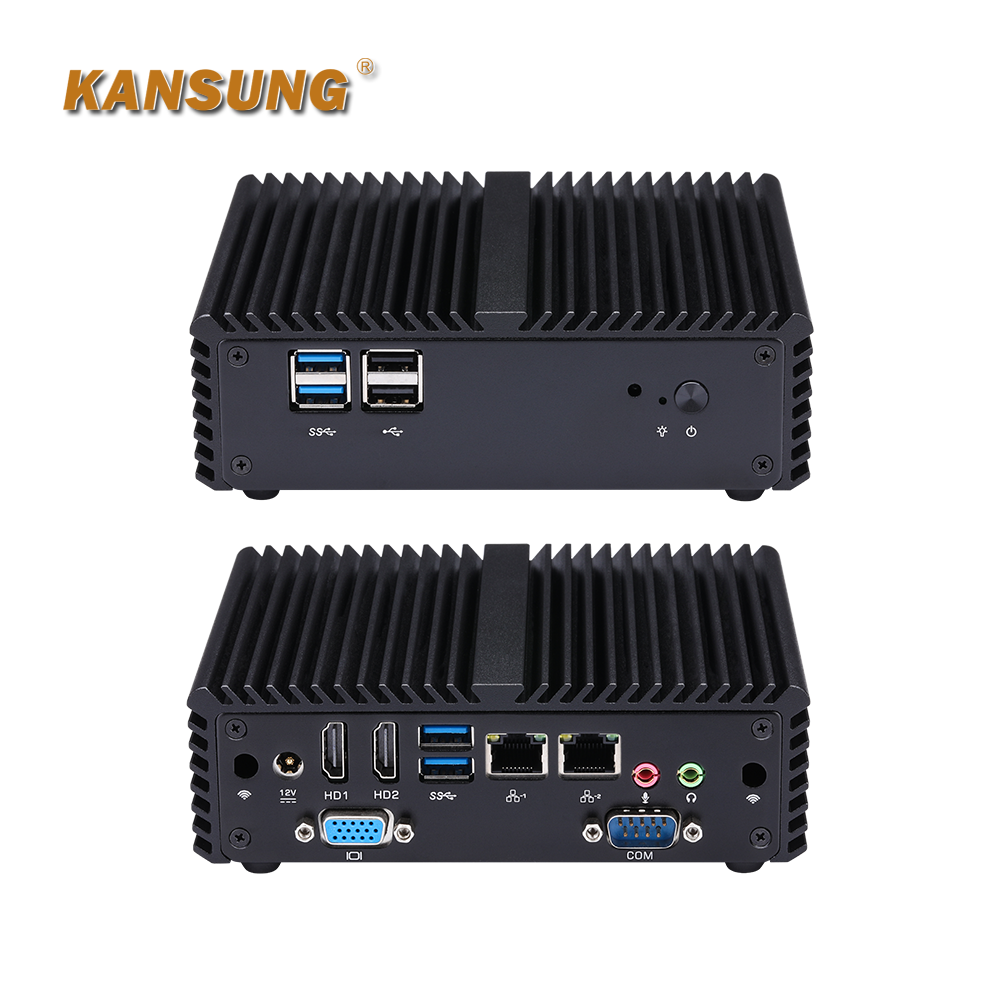

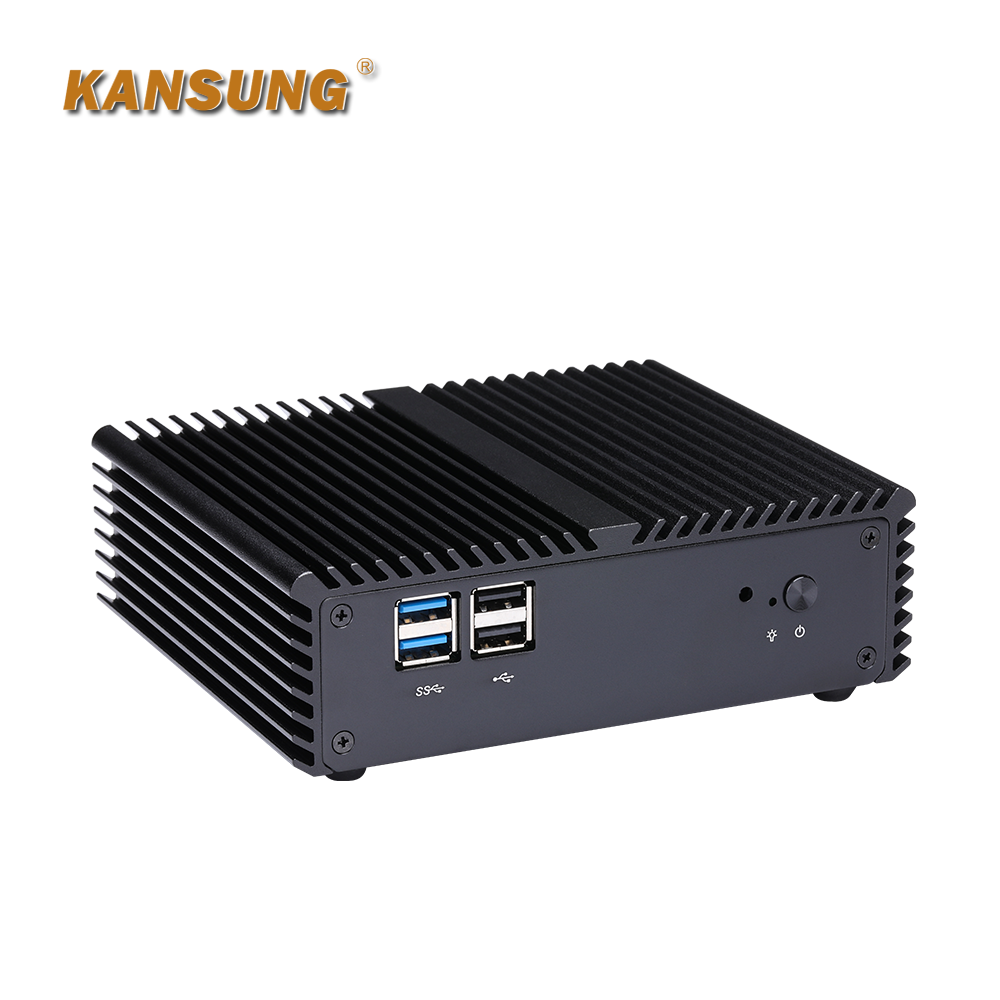

Front Port

• 1 x Power Button
• 1 x Power LED
• 2 x USB 3.0, 2 x USB 2.0

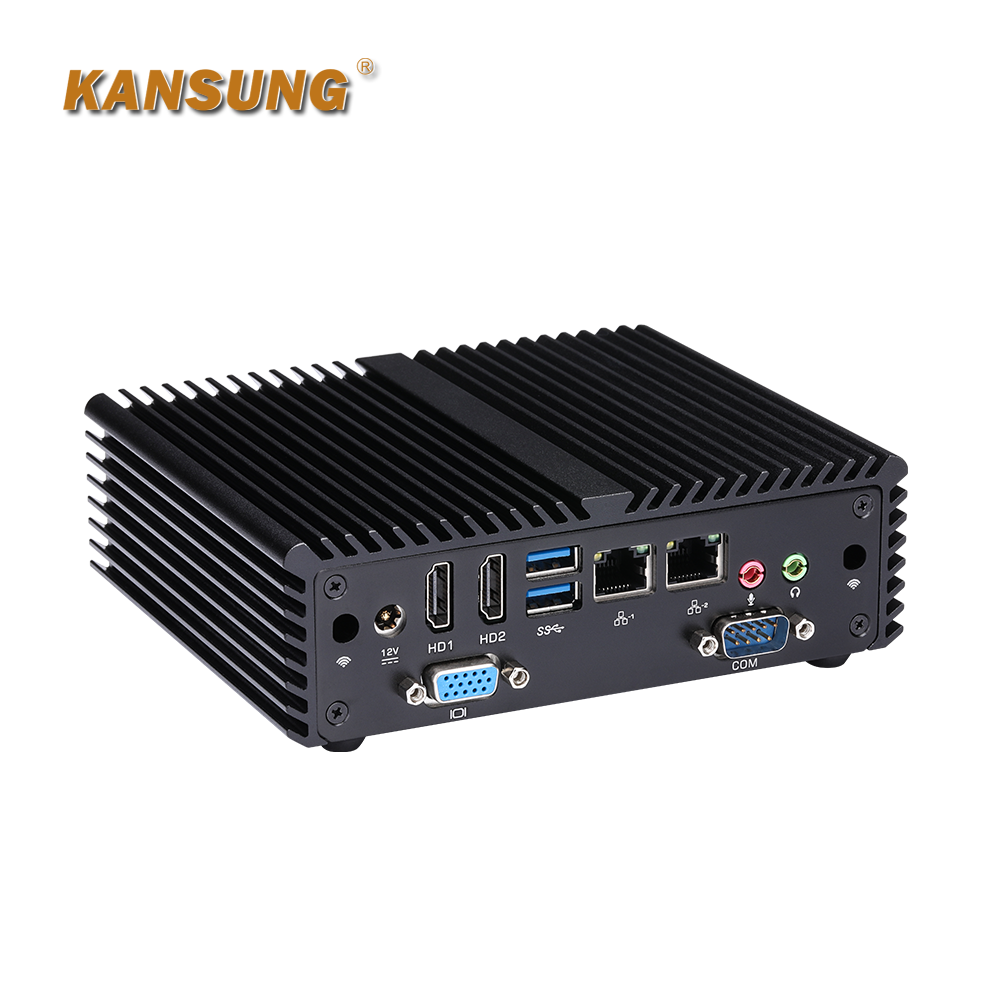

Back Port

• 1 x 12V DC Power Jack
• 2 x HD, 1 x VGA
• 2 x USB 3.0
• 2 x RJ-45 Gigabit LAN
• 1 x RS232 COM

Expansion

• 1 x Full Length Mini-PCIe for mSATA SSD

• 1 x Mini-PCIe (Full-length for 4G, or Half-length for WiFi by default)
• 1 x SIM Card Slot
• 1 x Automatically Boot Jumper (1 x 3Pin, Pitch 2.54mm)
• 1 x VGA (2 x 5Pin, Pitch 2.0mm)
• 1 x GPIO (2 x 5Pin, Pitch 2.0mm)

Operating System

Windows 10 (unactivated & not licensed ) was pre-installed for test by default.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

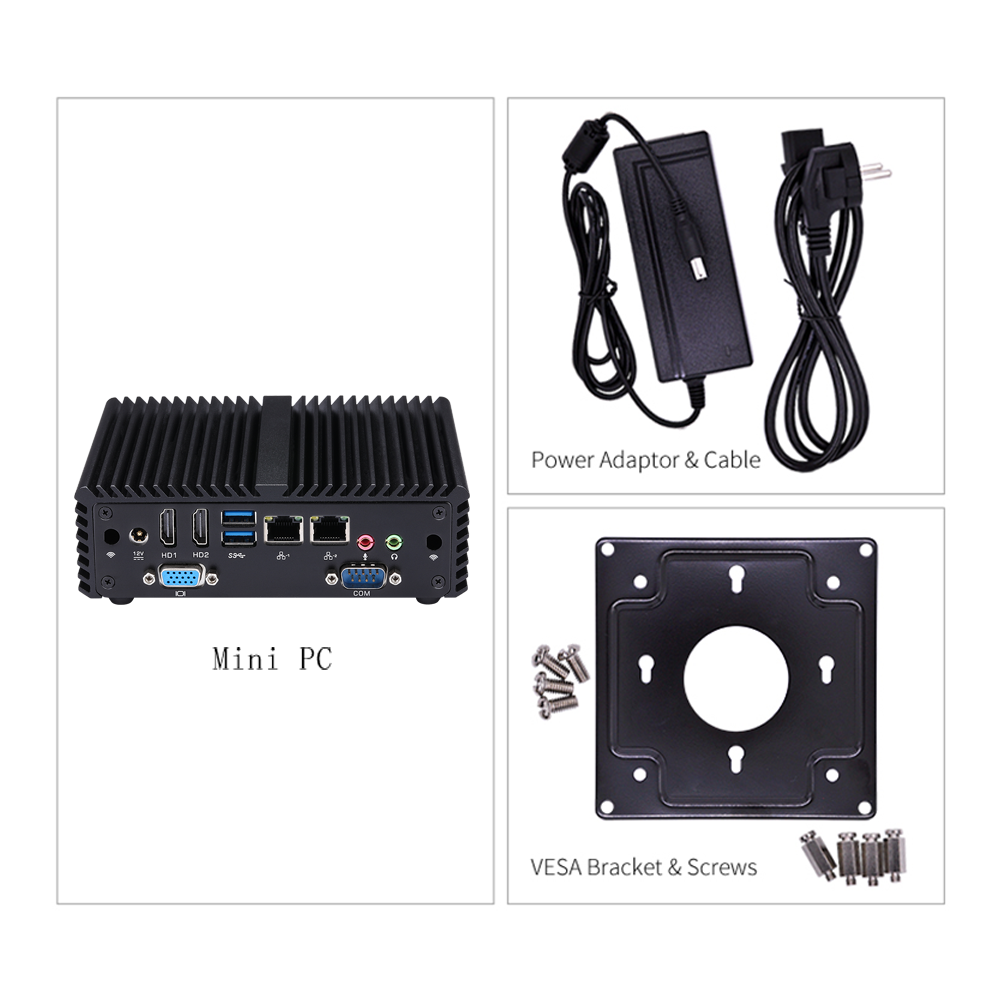

Packing List

• 1 x Mini PC
• 1 x Power Adapter (12V 3A)
• 1 x Power Plug (Type based on buyer's country)
• 1 x VESA Mount Bracket & Screws
