6x2.5G Intel Alder Lake N100 N305 X7425E Firewall Router PC

Item Description

Memory: 1 x DDR5 SO-DIMM Socket (Up to 48G)

Storage: 1 x 2.5 inch HDD/SSD, 1 x M.2 for SSD (M key, Type: 2280mm, PCIe 3.0 x1)

Grhapics: Intel UHD Graphics

LAN Chipset: 6 x Intel I226-V 2.5 Gigabit Lan

Cooling Mode: Fanless design, but for better heat dissipation we will install a small USB-Fan inside (It will occupy the space of 2.5 inch HDD/SSD)

OS support: UEFI Windows 10, UEFI Linux etc.

Item Size: 155 x 127 x 47mm

Processor Performance Differences

Connectors

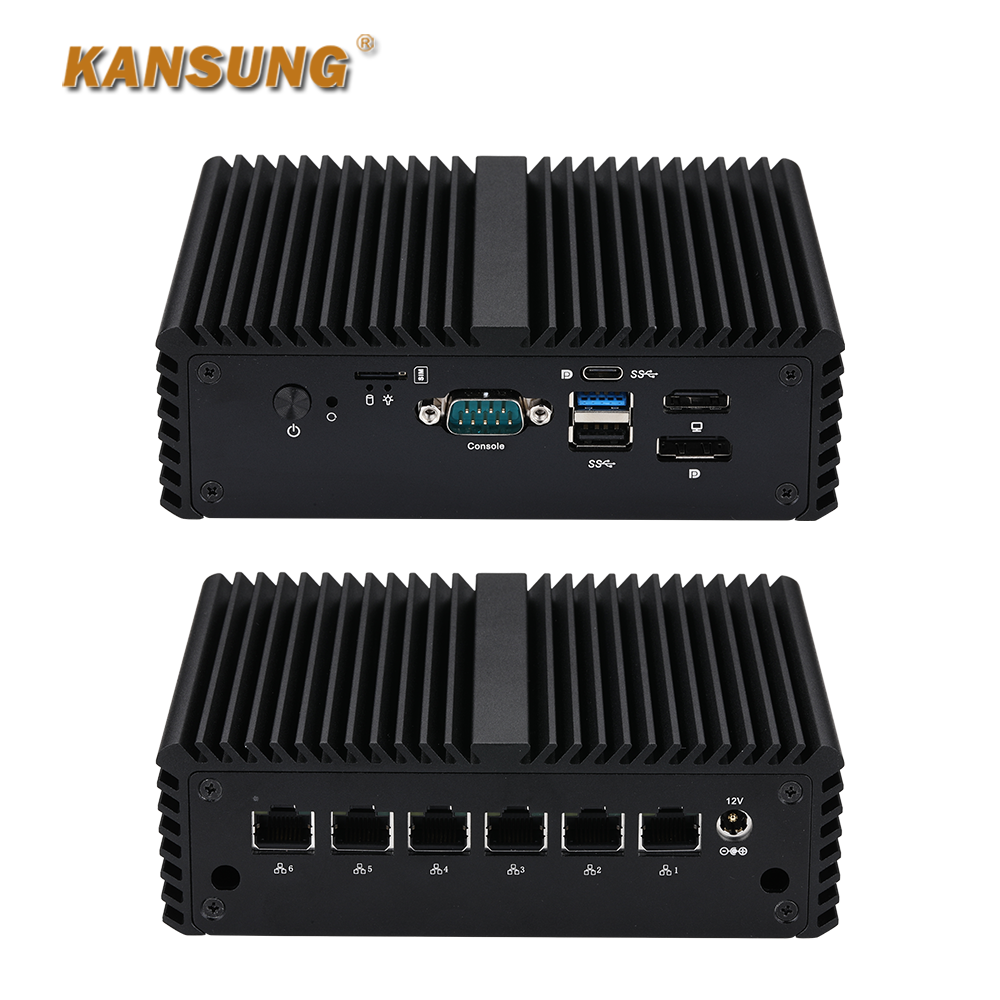

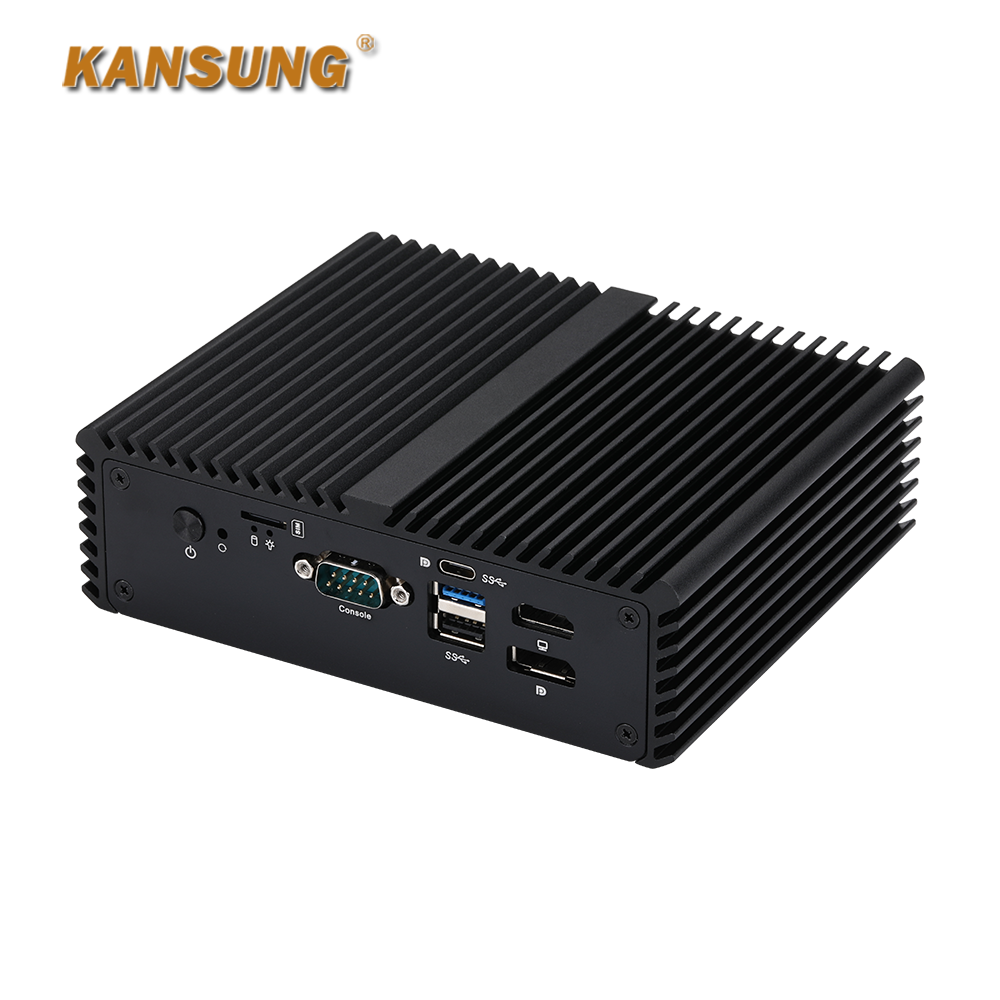

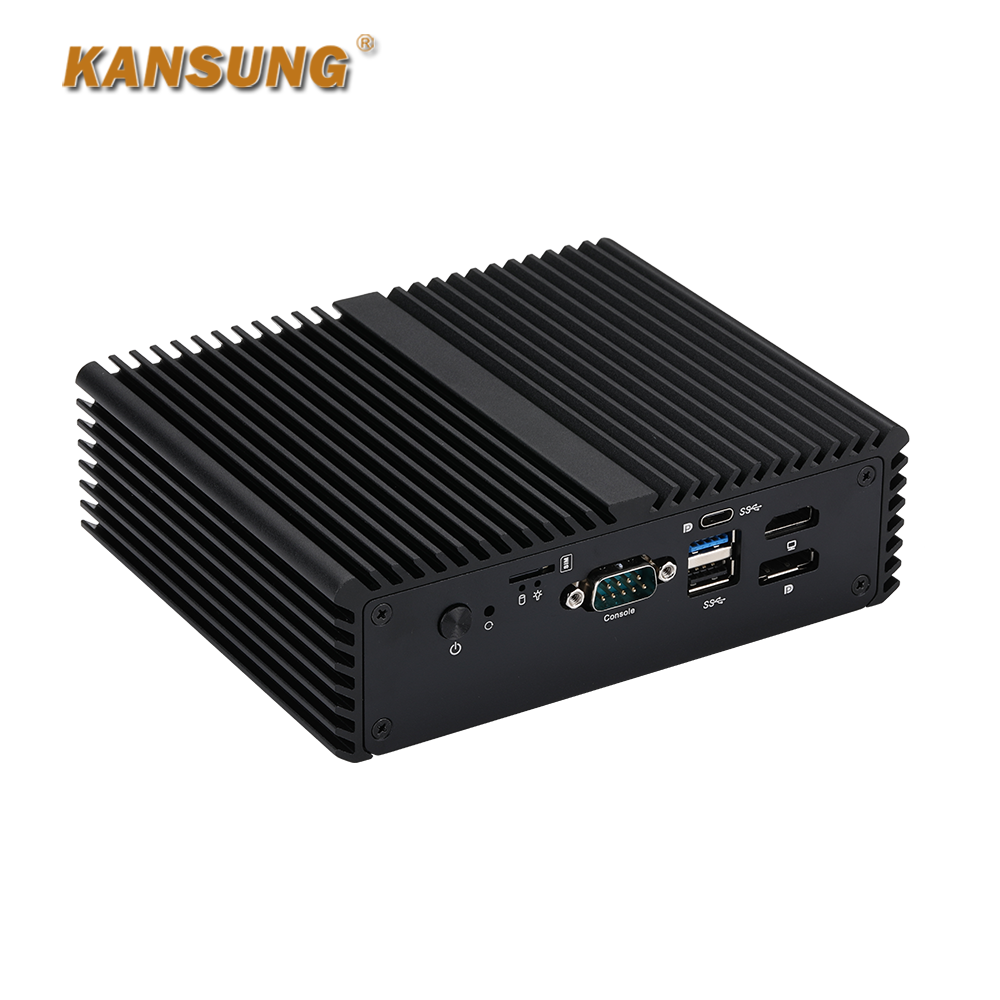

Front Port

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x Nano SIM Slot, 1 x RS-232 (DB9)
• 1 x Type-C (USB 3.0, Display port)
• 1 x HD, 1 x Display Port
• 1 x USB 3.0, 1 x USB 2.0

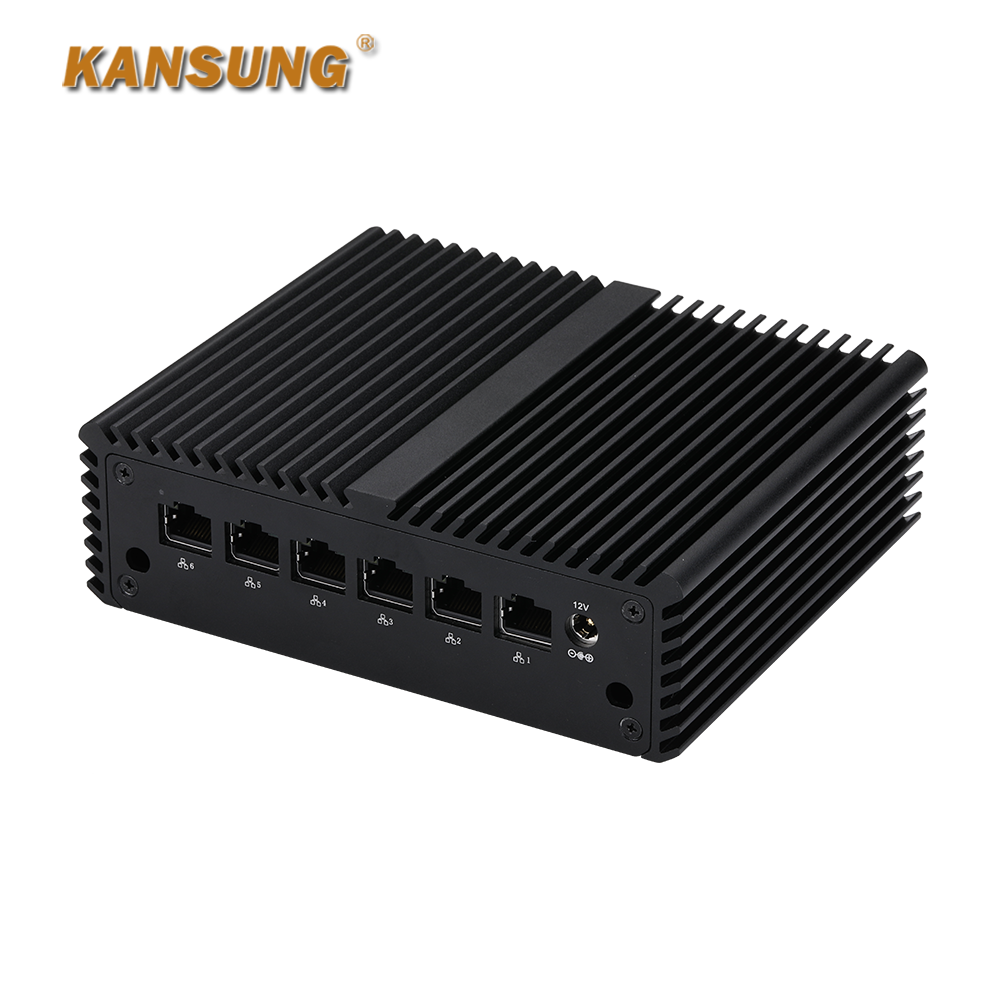

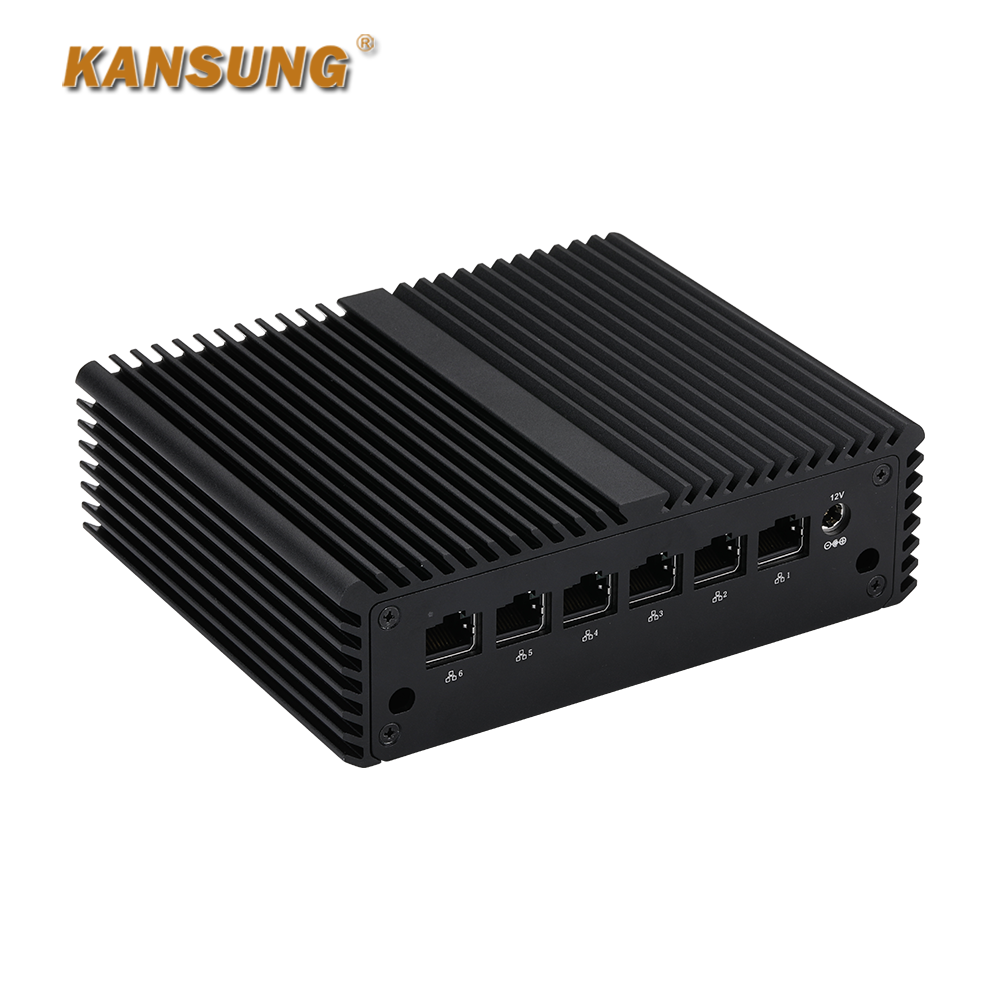

Back Port

• 1 x 12V DC Power Jack
• 6 x Intel I226-V 2.5 Gigabit LAN

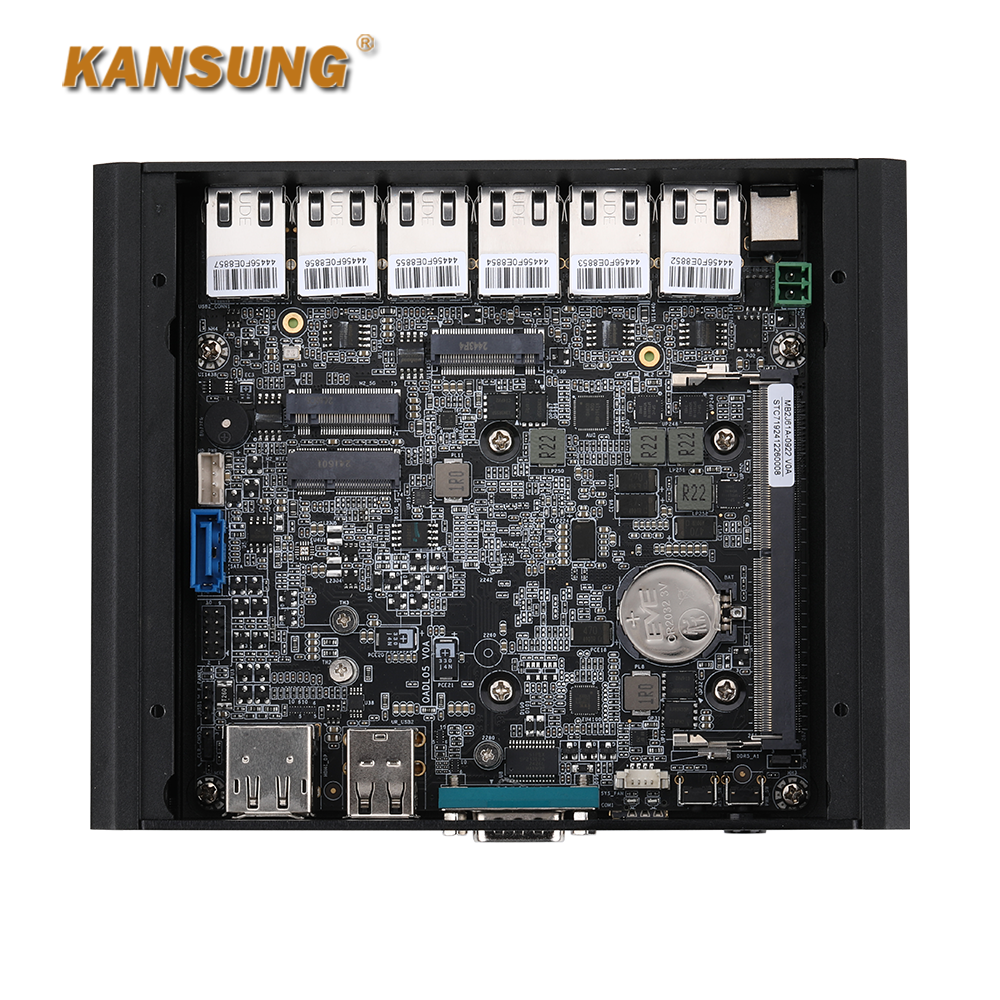

Expansion

• 1 x M.2 for 4G/5G (B key, 3042/3052)
• 5G Mode requires customization
• 1 x M.2 for Wi-Fi (E key, type: 2230)
• 1 x M.2 for SSD (M key, type:2280, PCIe 3.0 x1)
• 1 x SIM Card Slot
• 1 x AutoStart Jumper (1 x 3Pin, Pitch 2.0mm)
• 1 x CMOS Clear Jumper (1 x 3Pin, Pitch 2.0mm)
• 1 x Power Header (1 x 2Pin, Pitch 3.5mm, Phoenix 2Pin)

Operating System

Ubuntu (User name: oem, Password: oem123) was pre-installed for test by default.

Barebone device will come without OS.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

Packing List

• 1 x Mini PC
• 1 x Power Cord (Type based on buyer's country)
• 1 x Power Adapter
• 1 x VESA Bracket
• 1 x Screws
