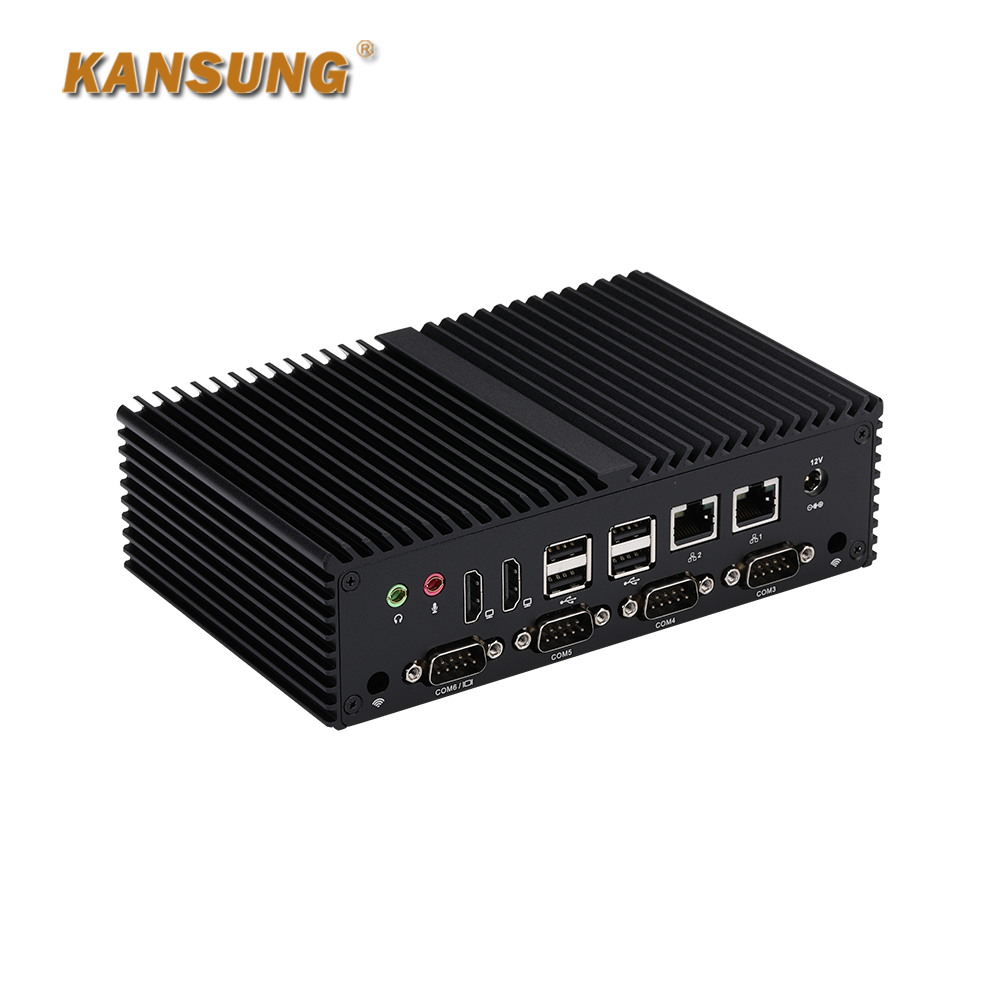

6 COM 2 HD Intel Alder Lake N100 N305 X7425E Industrial PC

Item Description

Memory: 1 x DDR5 SO-DIMM Socket (Up to 16G)

Storage: 1 x 2.5 inch HDD/SSD, 1 x M.2 for SSD (M key, Type: 2280mm, PCIe 3.0 x1)

Grhapics: Intel UHD Graphics

LAN Chipset: 2 x Realtek 2.5 Gigabit Lan

Cooling Mode: Fanless

OS support: UEFI Windows 10, UEFI Linux etc.

Item Size: 178 x 111 x 52mm

Processor Performance Differences

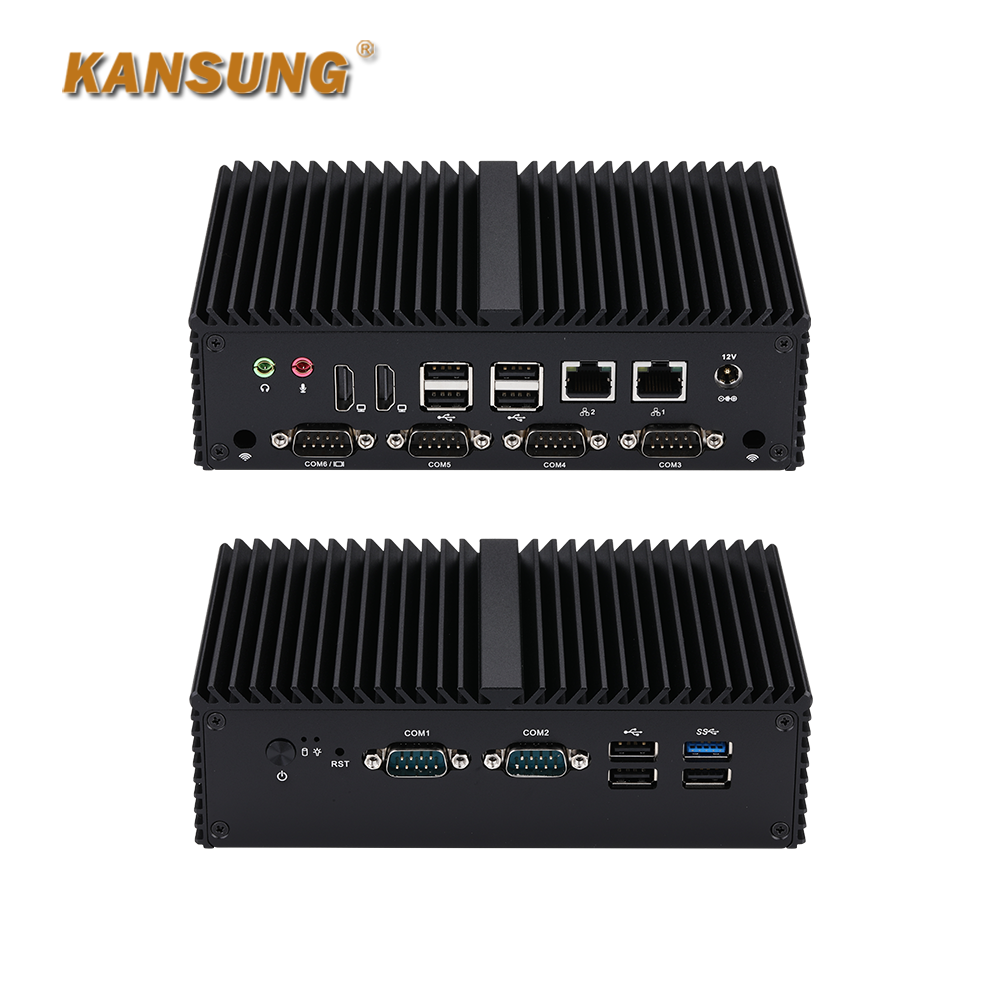

Connectors

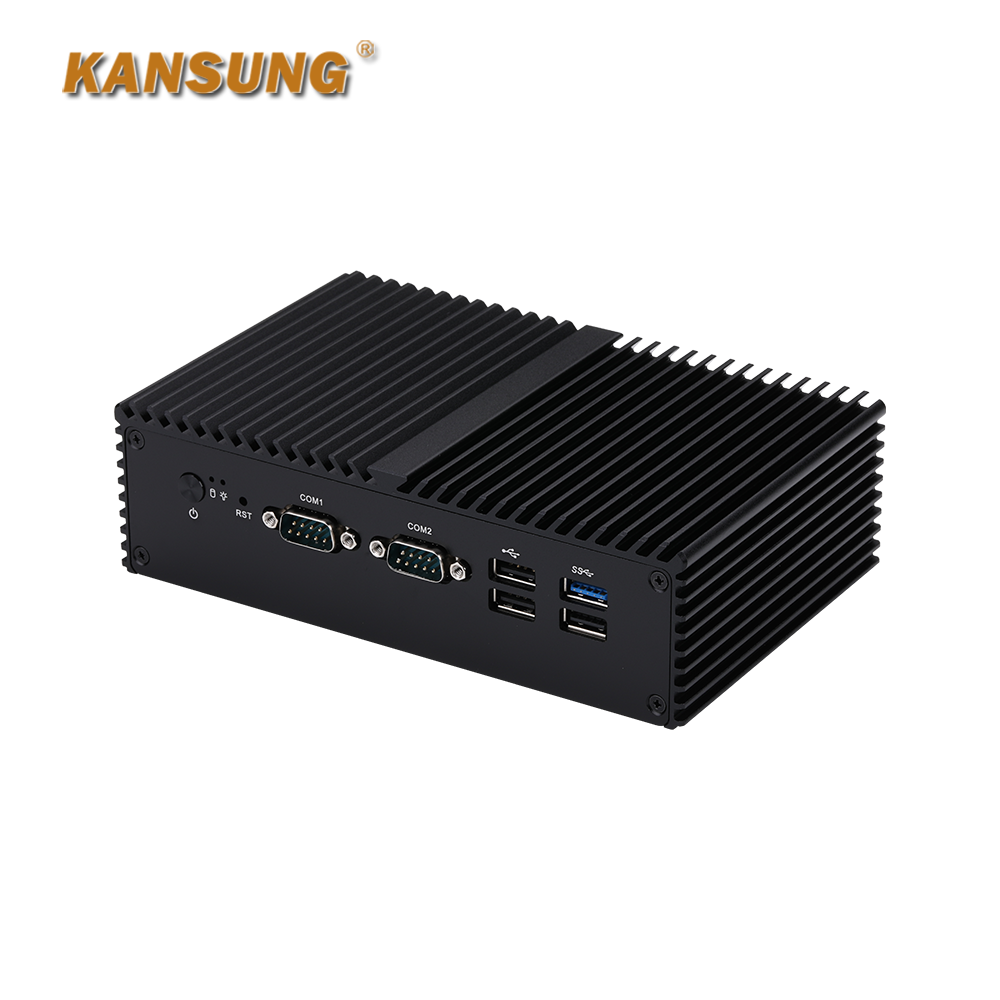

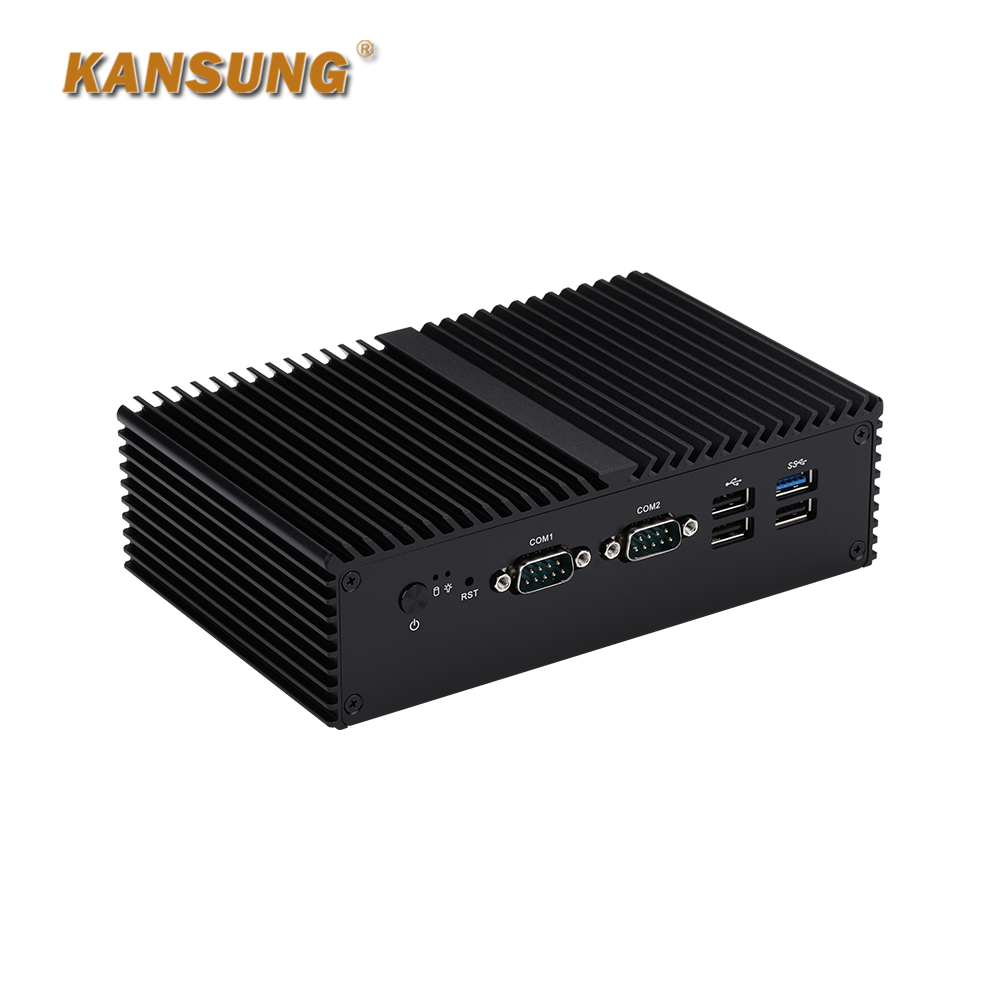

Front Port

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED

• 2 x RS232 (COM1/2 can be setup as RS485)
• 1 x USB 3.0, 3 x USB 2.0

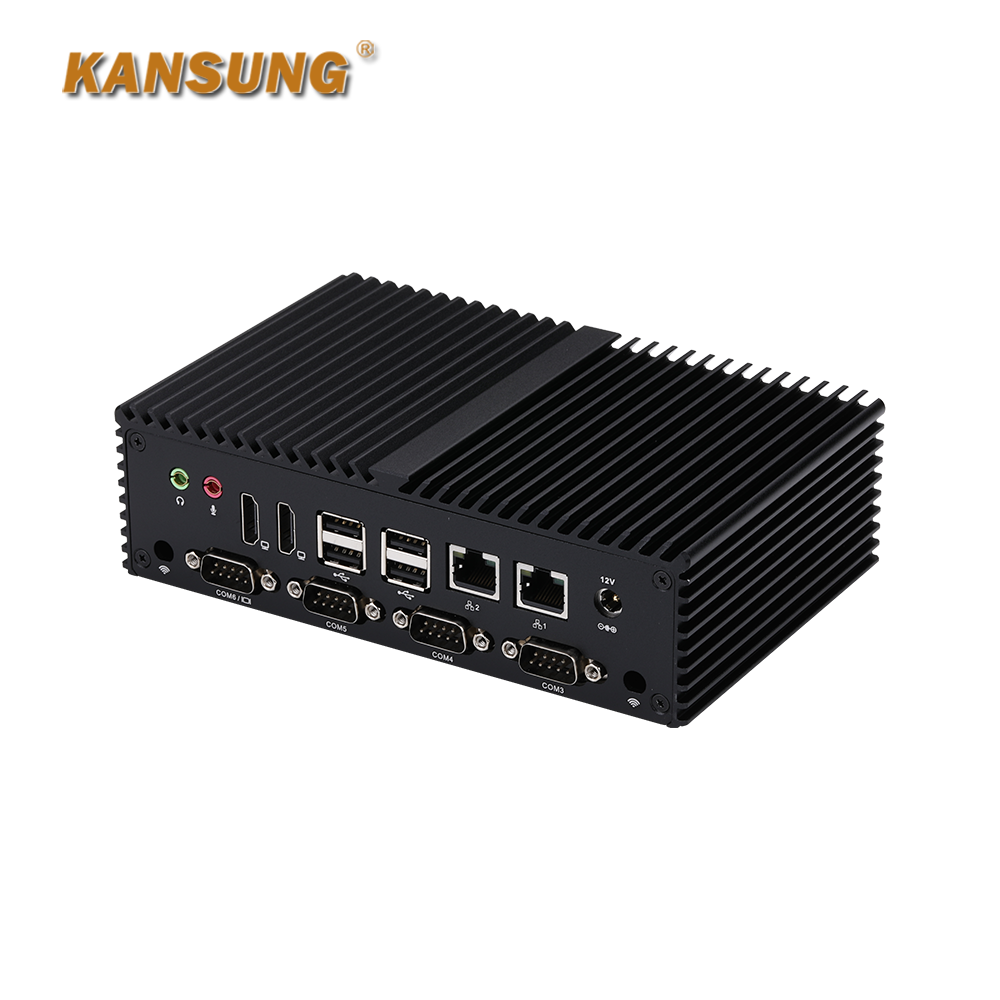

Back Port

• 1 x 12V DC Power Jack
• 2 x HD
• 2 x RJ-45 Port for LAN
• 4 x USB 2.0
• 4 x RS232 (Support 5V/12V, COM6 can be changed to VGA)
• 1 x Audio (Mic-in, Line-out)

Expansion

• 1 x M.2 for SSD (M key, 2280, PCIe 3.0x1)
• 1 x M.2 for 4G/5G (B key, 3042/3052)
• 5G Mode requires customization
• 1 x M.2 for Wi-Fi (E key, type: 2230)

• 1 x GPIO (2 x 5Pin, Pitch 2.0mm)
• 1 x SIM Card Slot
• 1 x AutoStart Jumper (1 x 3Pin, Pitch 2.54mm)
• 1 x CMOS Clear Jumper (1 x 3Pin, Pitch 2.54mm)
• 1 x Front Panel (2 x 5Pin, Pitch 2.0mm)

Operating System

Ubuntu (User name: oem, Password: oem123) was pre-installed for test by default.

Barebone device will come without OS.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

Different Version

There are kinds of version for option

Packing List

• 1 x Mini PC
• 1 x Power Cord (Type based on buyer's country)
• 1 x Power Adapter
• 1 x VESA Bracket
• 1 x Screws
