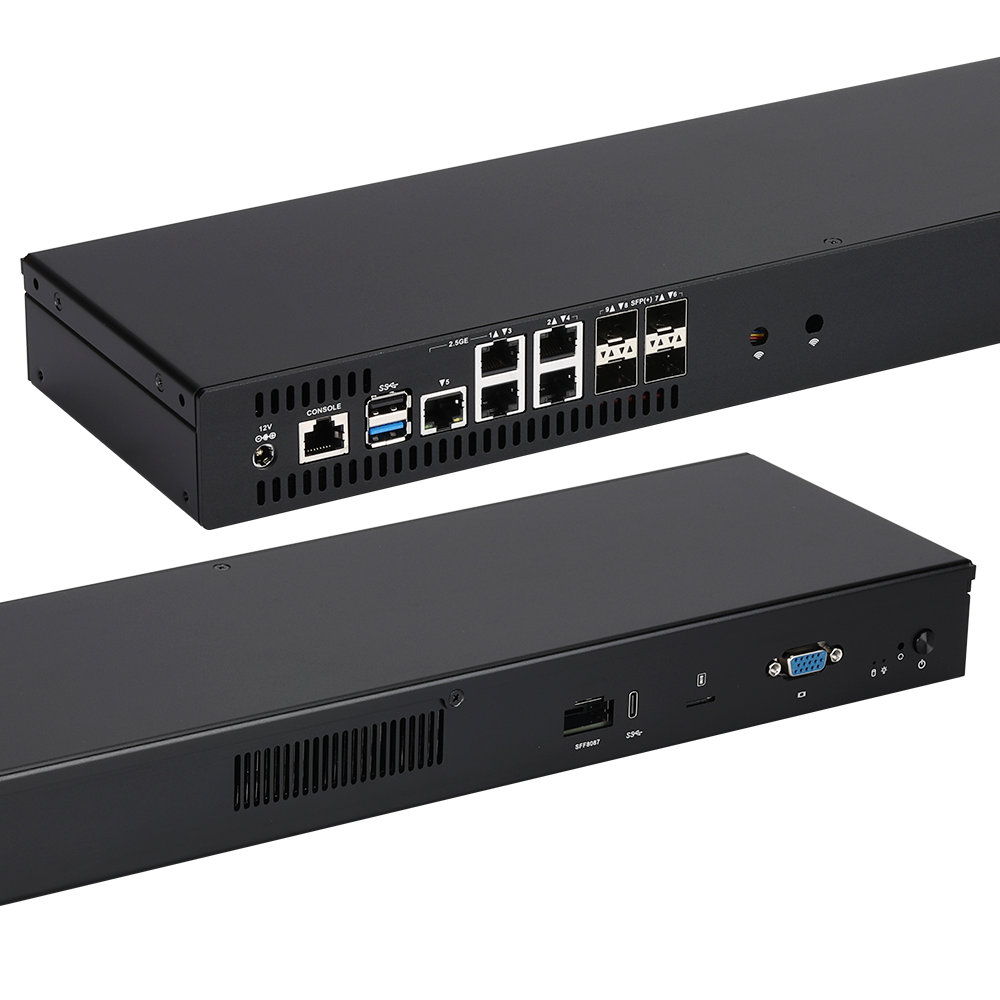

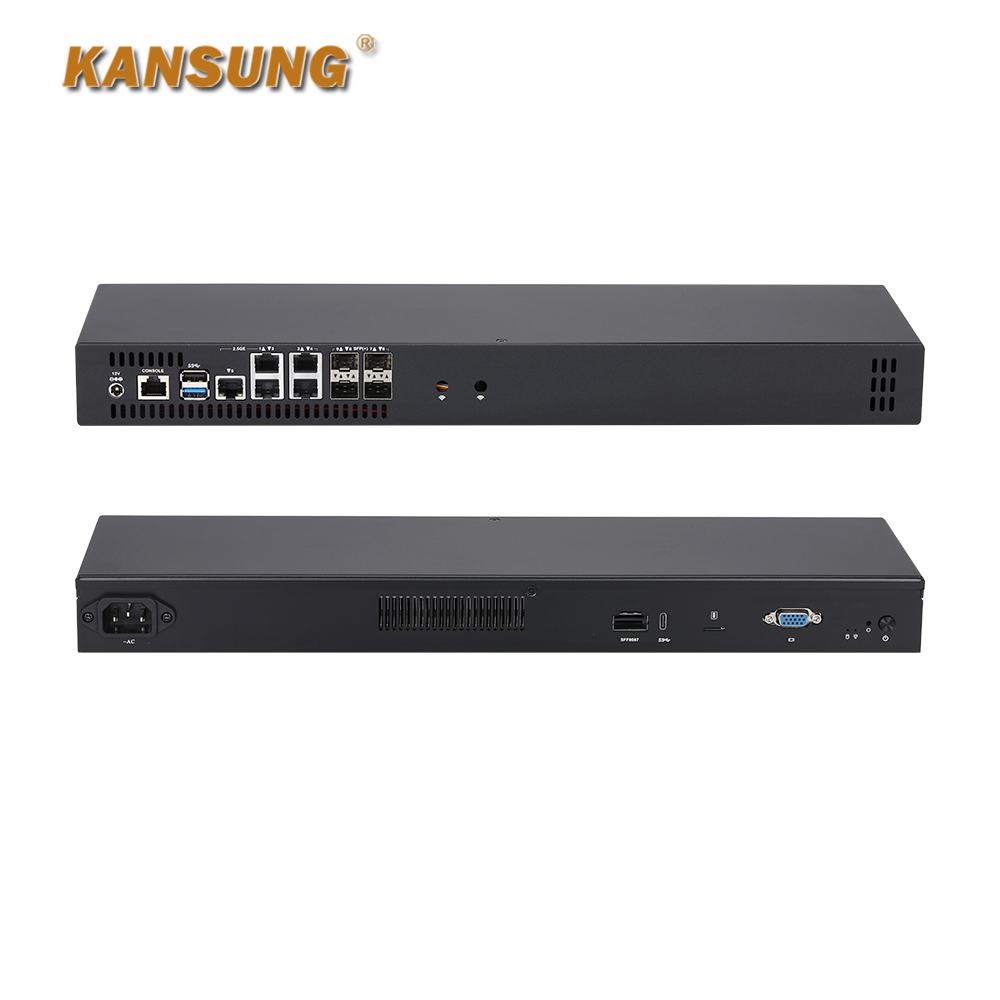

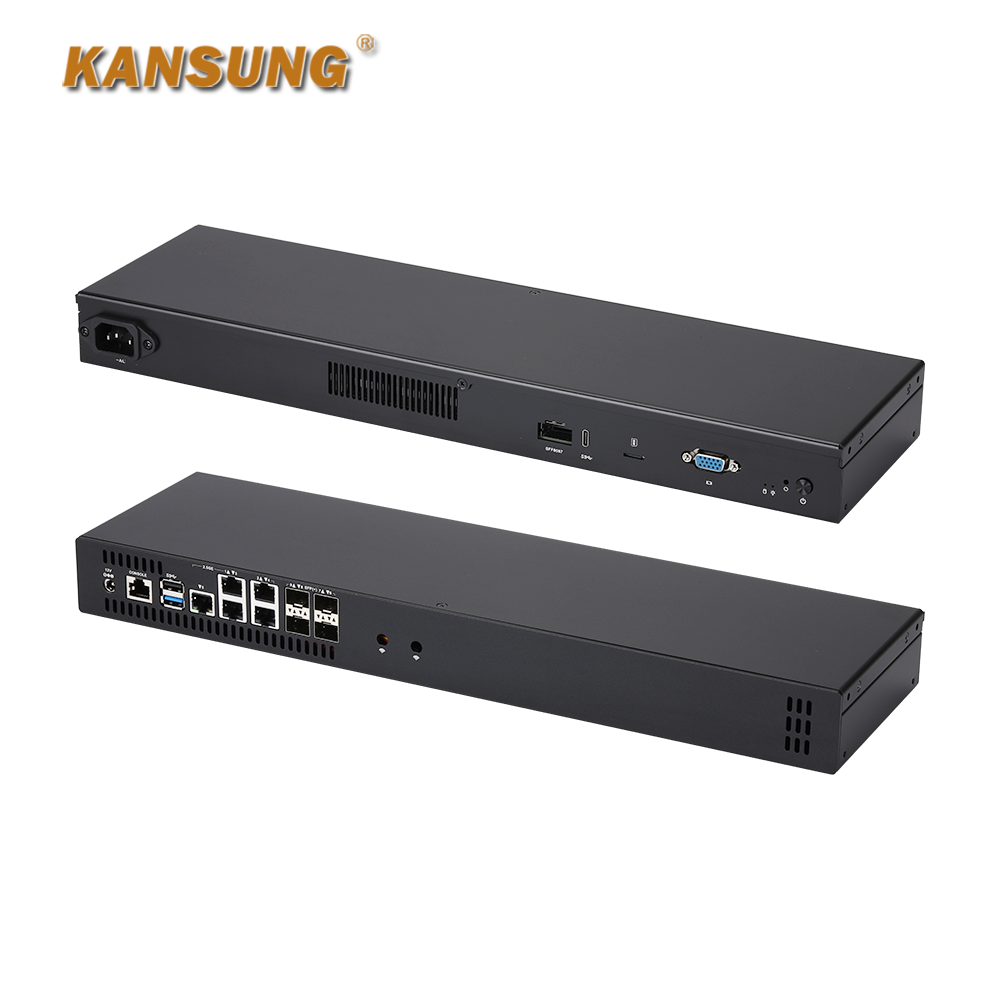

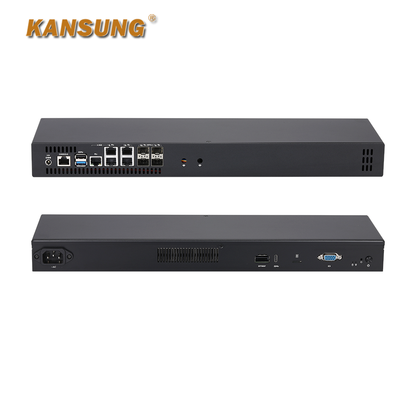

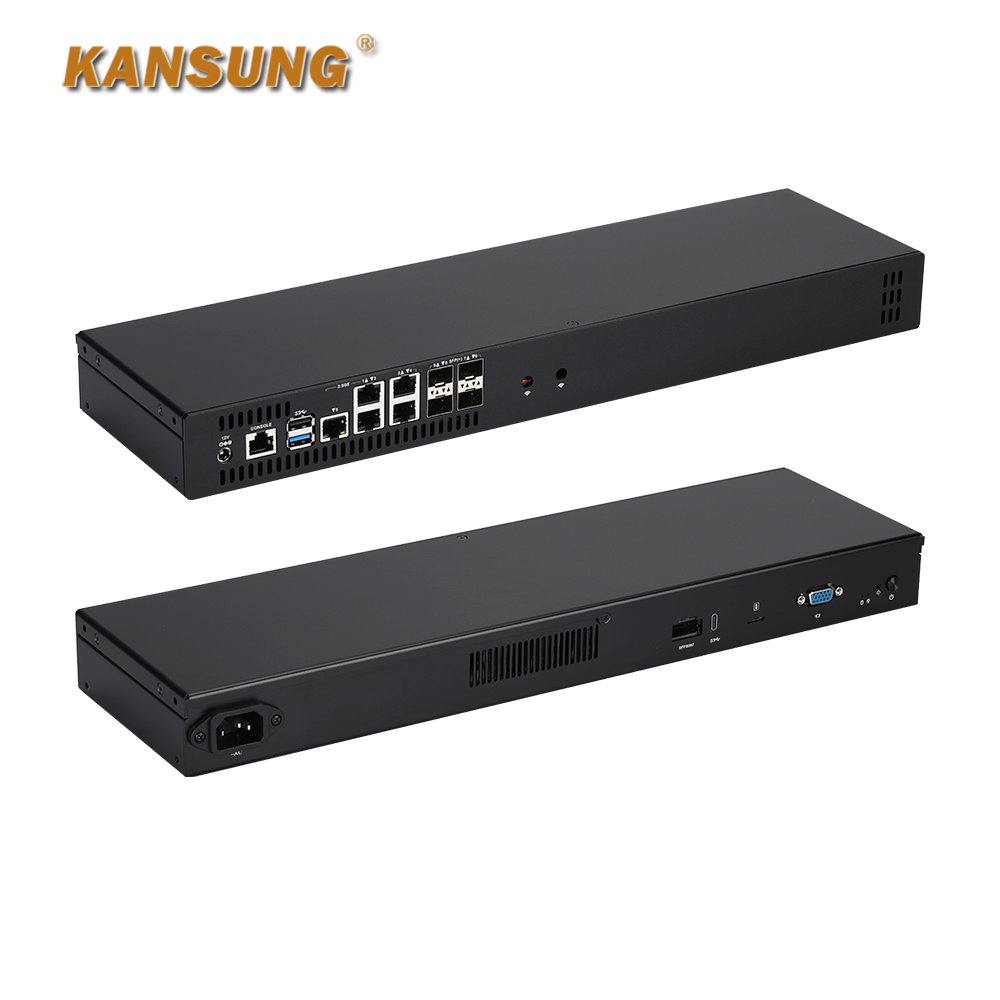

4x10G SFP+ 5x2.5G Intel Atom C3758R C3808 Network 1U Server
4x10G SFP+ 5x2.5G Intel Atom C3758R C3808 Network 1U Server
Regular price
$191.00 USD
Regular price
Sale price
$191.00 USD
Taxes included.
Quantity
Couldn't load pickup availability
Item Description
Memory: 2 x DDR4 SO-DIMM Socket (Up to 64G, 2400MHz)
Storage: 2 x 2.5 inch HDD/SSD, 2 x M.2 for SSD (M key, Type: 2280mm, PCIe 3.0 x2)
Grhapics: ASPEED AST2400
LAN Chipset: 5 x Intel I225-V/I226-V 2.5 Gigabit Lan, 2 or 4 x SFP+
Cooling Mode: Fan
OS support: Windows 10, Linux etc.
Item Size: 440 x 127 x 44mm
Processor Performance Differences
| Model No. | K20322G9-1U | K20331G9-1U | K20332G9-1U | K20342G9-1U | K20351G9-1U | K20352G9-1U |
| Code Name | Denverton | Denverton | Denverton | Denverton | Denverton | Denverton |
| Processor Type | Atom | Atom | Atom | Atom | Atom | Atom |
| Processor Number | C3558 | C3758R | C3758 | C3808 | C3958 | C3908 |
| # of Cores | 4 | 8 | 8 | 12 | 16 | |
| # of Threads | 4 | 8 | 8 | 12 | 16 | |
| Base Frequency | 2.20 GHz | 2.40 GHz | 2.20 GHz | 2.00 GHz | 2.00 GHz | |
| Burst Frequency | / | / | / | / | / | |
| Cache | 8 MB | 16 MB | 16 MB | 12 MB | 16 MB | |
| TDP | 16 W | 26 W | 25 W | 25 W | 31 W |
Function Diffrences
| Model No. | K20322G9-1U | K20331G9-1U | K20332G9-1U | K20342G9-1U | K20351G9-1U | K20352G9-1U |
| Memory Chnnels | 2 | 2 | 2 | 2 | 2 | 2 |
| SFP+ 10G | 2 | 4 | 4 | 4 | 4 | 4 |
| SFP 1G (2.5G) | 2 | / | / | / | / | / |
| M.2 M Key (PCIe 3.0 x 2) | 2 | 2 | 2 | 2 | 2 | 2 |
| M.2 M Key (PCIe 3.0 x 1) | / | / | / | / | / | / |
| RJ-45 | 5 | 5 | 5 | 5 | 5 | 5 |
| VGA | 1 | 1 | 1 | 1 | 1 | 1 |
| SATA 3.0 | 1 | 2 | 2 | 2 | 2 | 2 |
| 5G | 1 | 1 | 1 | 1 | 1 | 1 |
| Mini SAS | / | 1 | 1 | 1 | 1 | 1 |
| USB 3.0 | USB 2.0 | 1 | 1 | 1 | 1 | 1 |
| Type C | USB 2.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 |
Connectors
Front Port
- 1 x Power Button, 1 x Reset Button
- 1 x Power LED, 1 x HDD LED
- 1 x DB15 VGA, 1 x Nano SIM Slot
- 1 x Type C (USB 2.0/3.0)
- 1 x Mini SAS (SFF8087)
Back Port
- 1 x DC Power Jack
- 1 x RS-232 (RJ-45)
- 1 x USB 3.0, 1 x USB 2.0
- 5 x RJ-45 Port for 2.5G LAN
- 4 x 10G SFP(+), (10/1GBE)
Expansion
- 1 x M.2 for 4G/5G (B key, 3042/3052)
-
2 x M.2 for SSD (M key, 2280, PCIe 3.0 x 2)
Operating System
Ubuntu (User name: oem, Password: oem123) was pre-installed for test by default.
Barebone device will come without OS.
BIOS Support
Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.
Logo Service
LOGO printing is free, just provide your logo document if any need.
Packing List
- 1 x 1U Mini PC
- 1 x Power Cord (Type based on buyer's country)
- 2 x Ear Racks
-
1 x Screws
