4 Gigabit LAN with PoE Celeron Apollo Lake J3455 Firewall Mini PC

Item Description

Model: K710G4-S05

CPU: Intel Apollo Lake, Celeron J3455 Quad Core, 1.5GHz-2.3GHz, 2M Cache, Intel HD Graphics 500, AES-NI

CPU TDP: 10W

Memory: 1 x DDR3L SO-DIMM Socket (Up to 8G, 1600MHz)

Storage: 1 x 2.5 inch HDD/SSD, 1 x Mini PCIe for mSata SSD

Audio: No

LAN Chipset: 4 x Intel I210-AT/I211-AT Gigabit LAN (support PoE)

OS Support: UEFI Windows 10, UEFI Linux etc.

Item Size: 187 x 111 x 50mm

Cooling Mode: Fanless

Material: Aluminum Alloy

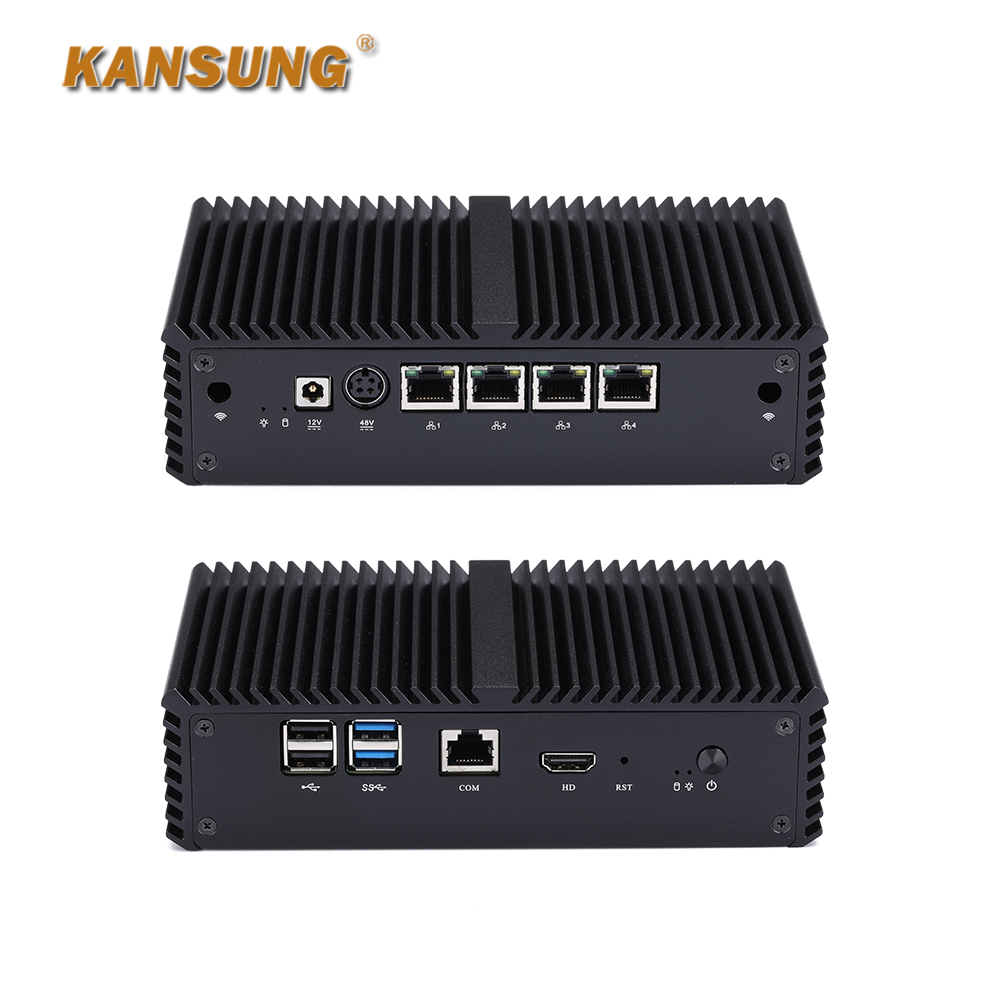

Connectors

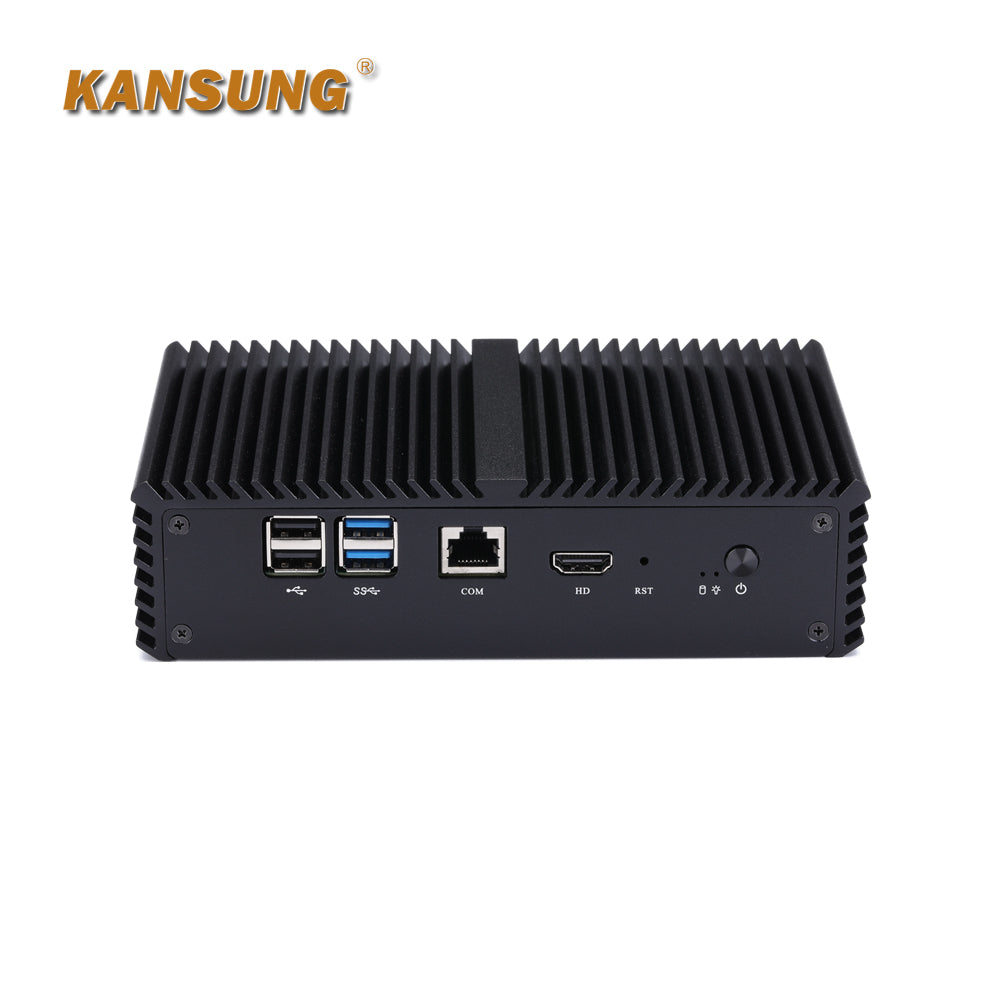

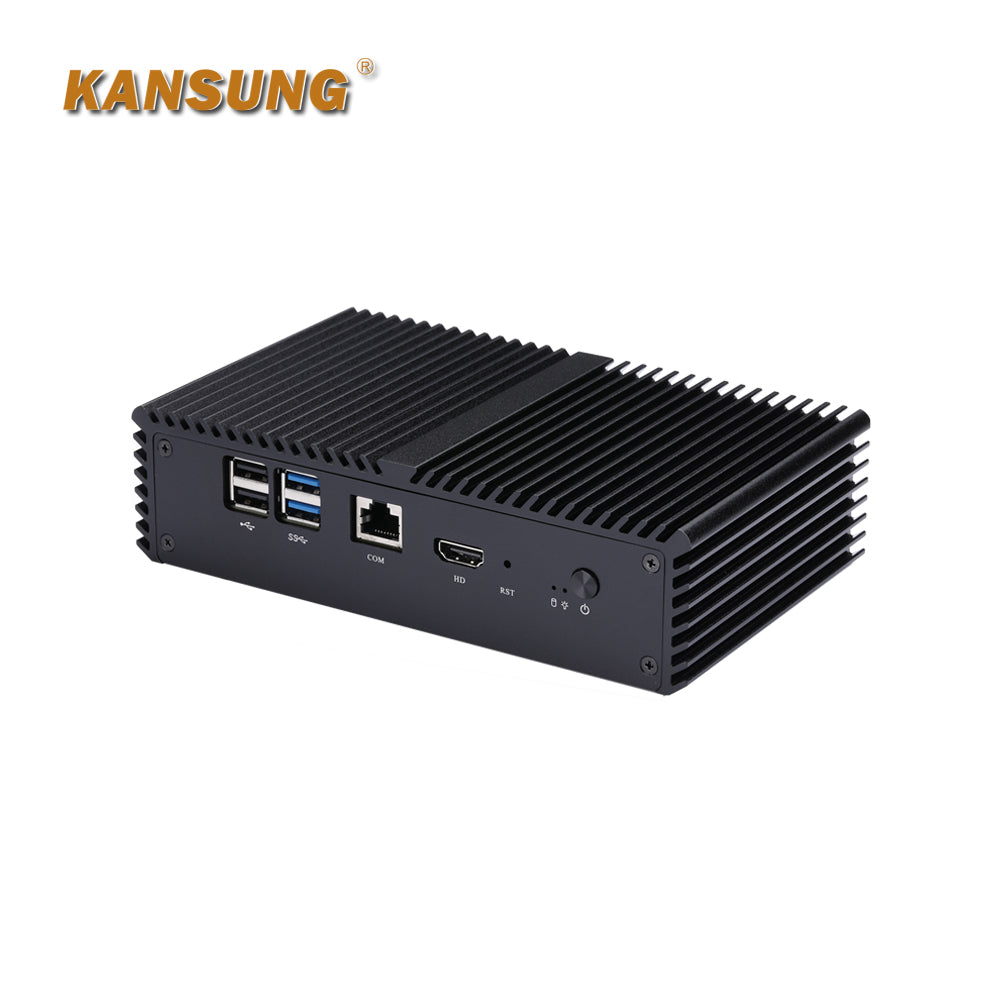

Front Port

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 2 x USB 2.0, 2 x USB 3.0
• 1 x RS-232 Port (COM1, RJ-45)
• 1 x HD

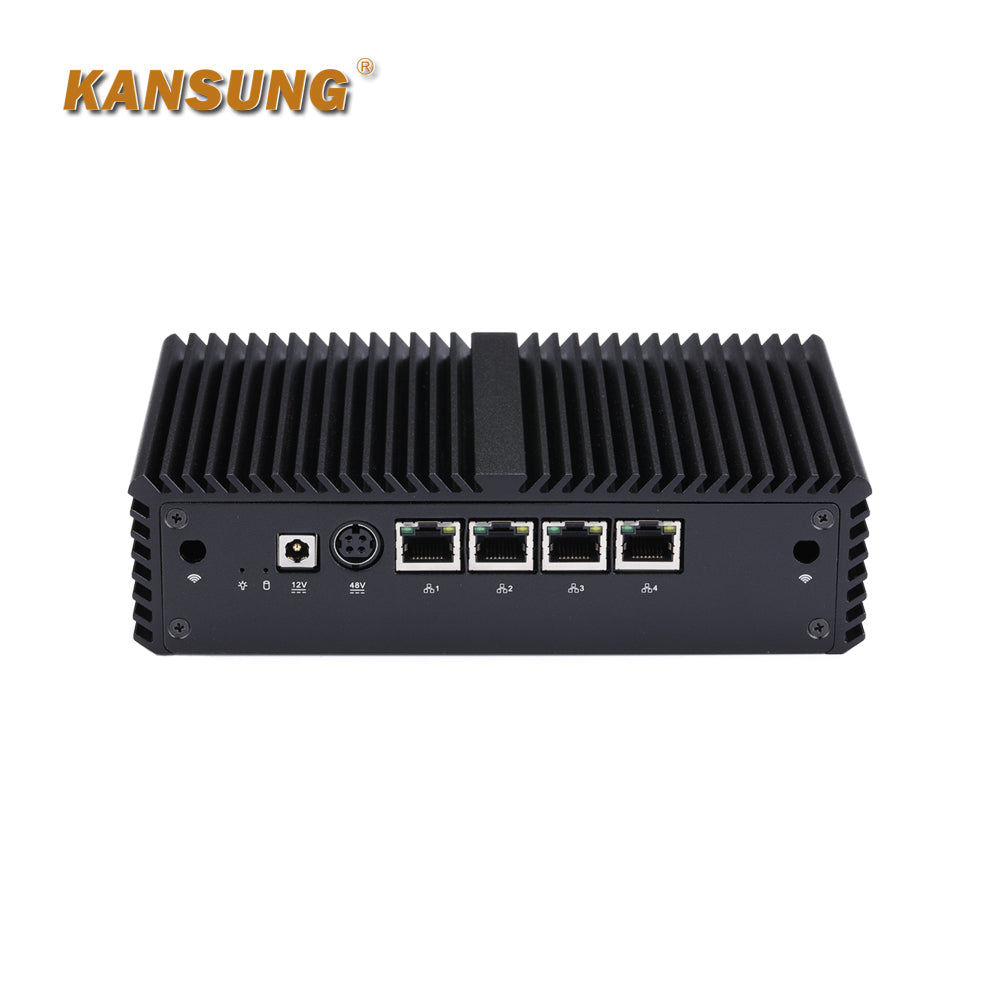

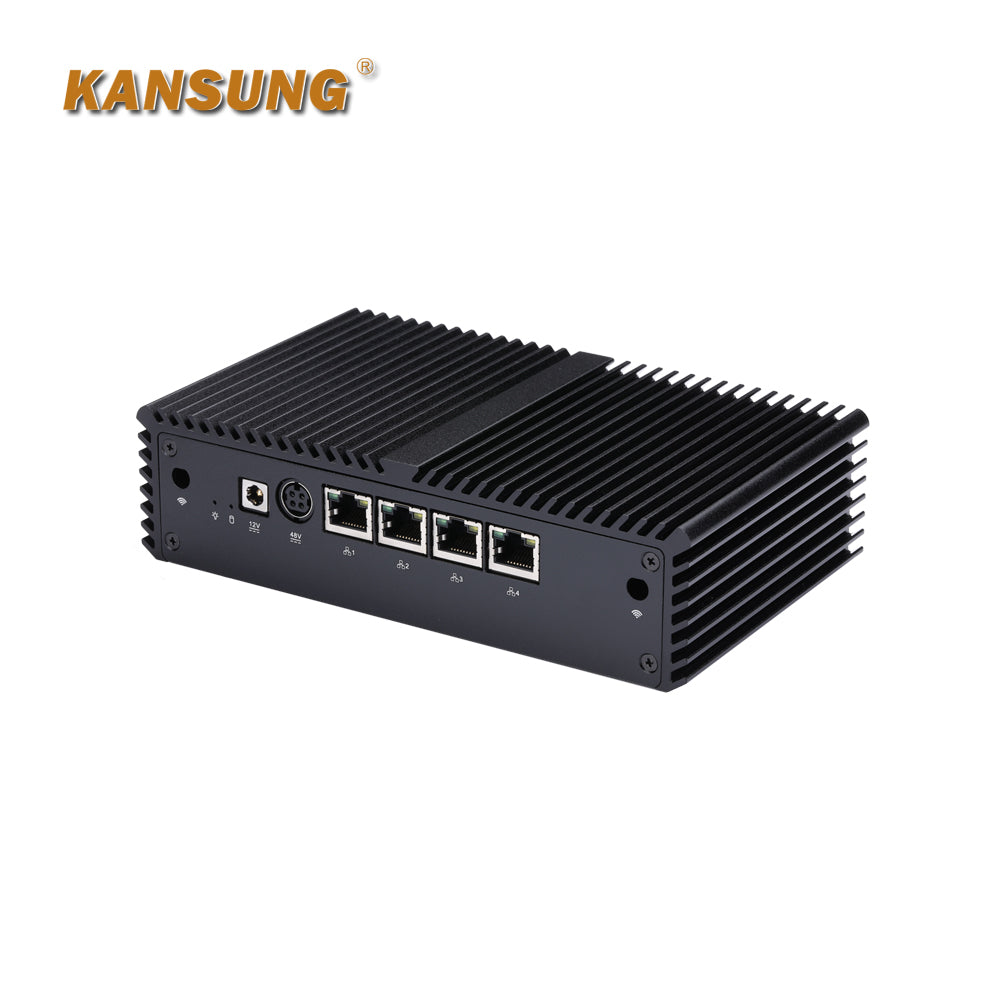

Back Port

• 1 x 12V DC Power Jack, 1 x 48V DC Jack for POE
• 1 x Power LED, 1 x HDD LED
• 4 x RJ-45 Port for Intel LAN with POE

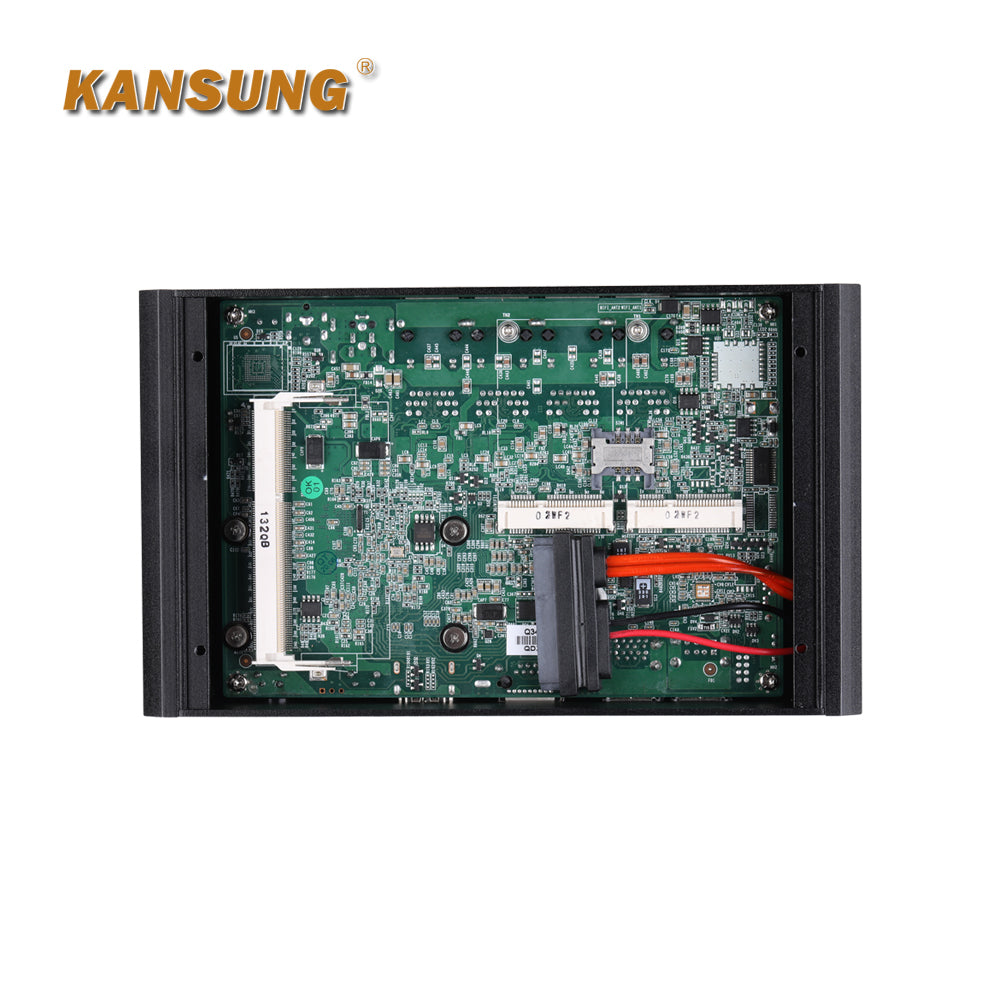

Expansion

• 1 x Full Length Mini-PCIe for mSATA SSD

• 1 x Mini-PCIe (Full-length for 4G, or Half-length for WiFi <Default only support USB Device>)
• 1 x SIM Card Slot
• 1 x 2.0mm Pitch for Clear CMOS Jumpter (1 x 3Pin)
• 1 x 2.0mm Pitch for GPIO (2 x 5Pin)
• *COM can be set up as RS-232/RS-485 (Customizing)
• *No Automatically Boot Jumper


Operating System

Windows 10 (unactivated & not licensed ) was pre-installed for test by default.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

Packing List

• 1 x Mini PC
• 1 x Power Adapter (12V 3A)
• 1 x Power Adapter (48V 2A for POE)
• 2 x Power Plugs (Type based on buyer's country)
• 1 x VESA Mount Bracket & Screws
