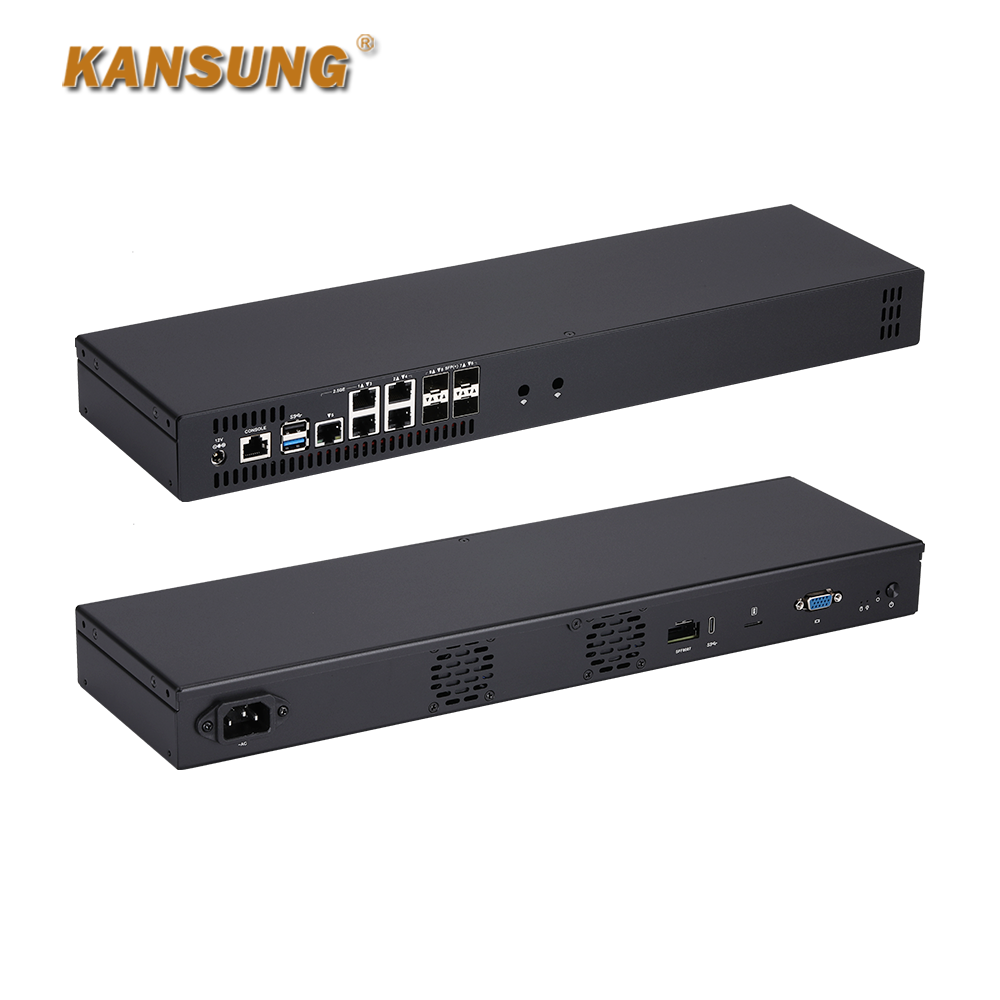

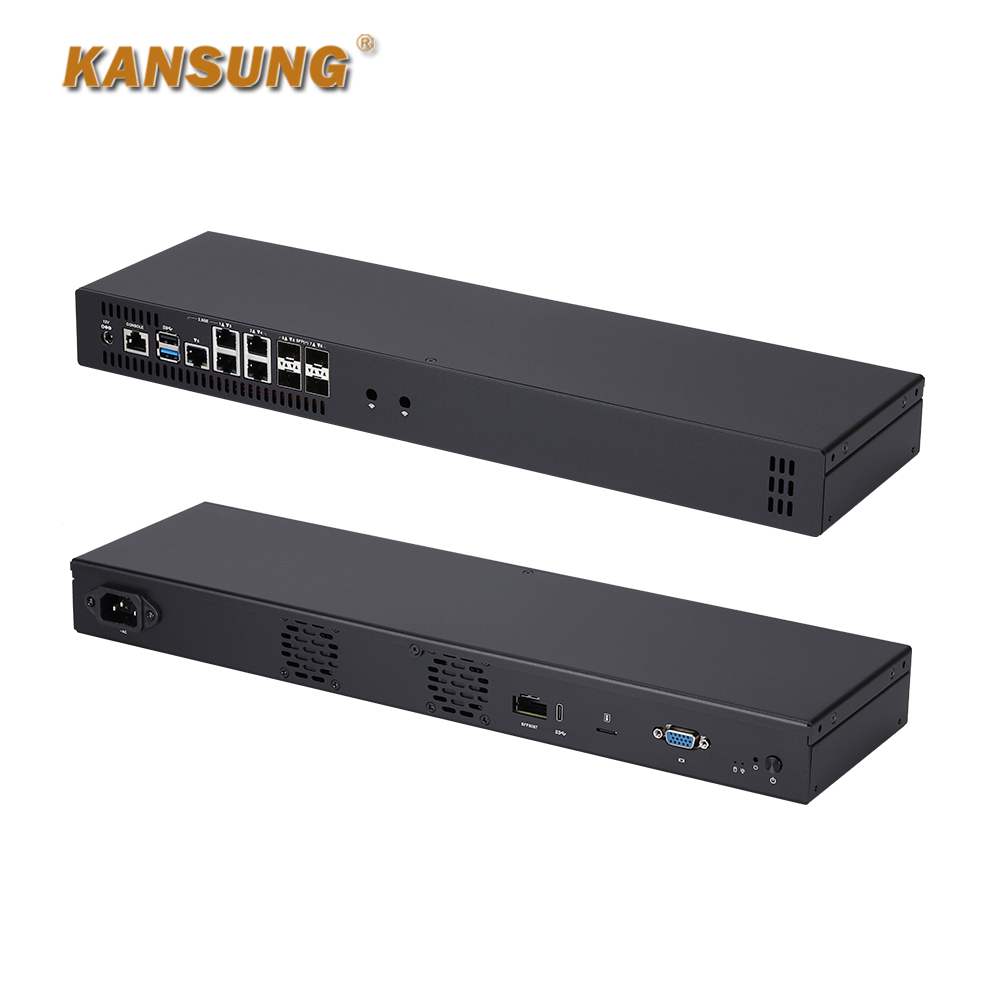

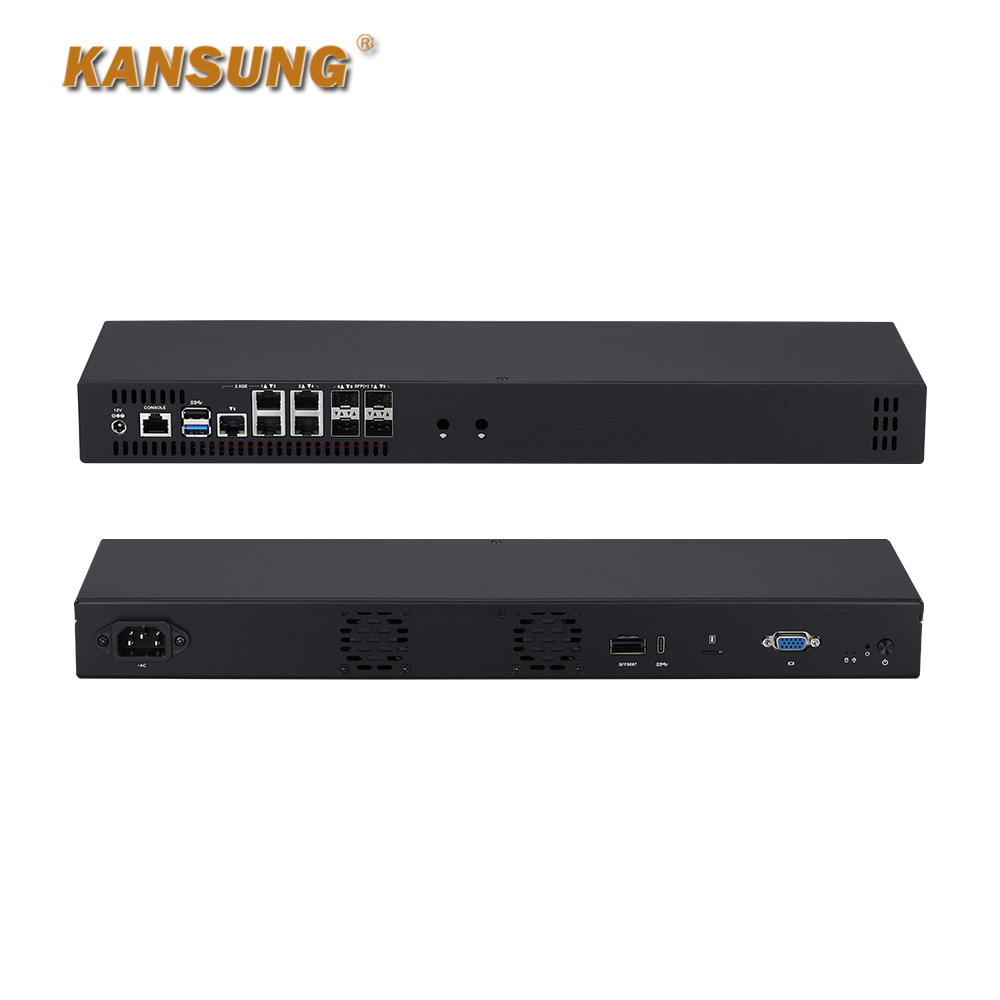

2x10G SFP+ 5x2.5G Intel Atom Denverton C3558 Network 1U Firewall Server

Item Description

Model: K20322G9-1U

CPU: Intel Denverton Atom 4 Cores C3558 Processor, 2.20GHz, 8M Cache, CPU TDP 16W, 2 x 10G SFP+, 2 x 1G (2.5G) SFP

Memory: 2 x DDR4 SO-DIMM Socket (Up to 64G, 2400MHz)

Storage: 2 x 2.5 inch HDD/SSD, 2 x M.2 for SSD (M key, Type: 2280mm, PCIe 3.0 x2)

Grhapics: ASPEED AST2400

LAN Chipset: 5 x Intel I225-V/I226-V 2.5 Gigabit Lan, 2 x 10G SFP+, 2 x 1G (2.5G) SFP

Cooling Mode: Fan

OS support: Windows 10, Linux etc.

Item Size: 440 x 127 x 44mm

Connectors

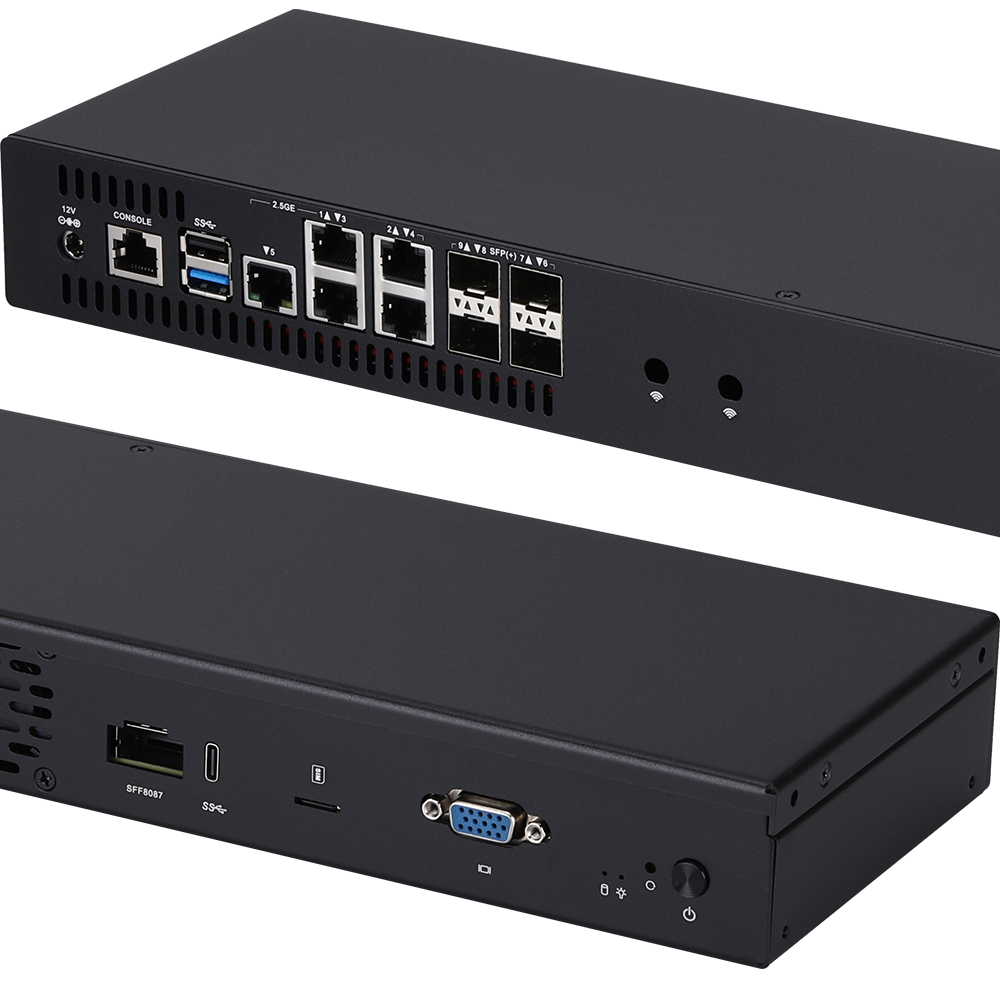

Front Port

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x DB15 VGA, 1 x Nano SIM Slot
• 1 x Type C (USB 3.0)
• 1 x Mini SAS (SFF8087)

Back Port

• 1 x 12V DC Power Jack
• 1 x RS-232 (RJ-45)
• 1 x USB 3.0, 1 x USB 2.0
• 5 x RJ-45 Port for 2.5G LAN
• 2 x 10G SFP+, 2 x 1G (2.5G) SFP

Expansion

• 1 x M.2 for 4G/5G (B key, 3042/3052)
• 2 x M.2 for SSD (M key, 2280, PCIe 3.0 x 2)


Operating System

Ubuntu (User name: oem, Password: oem123) was pre-installed for test by default.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

Packing List

• 1 x 1U Mini PC
• 1 x Power Cord (Type based on buyer's country)
• 2 x Ear Racks
• 1 x Screws
