5x2.5G LAN 10th Gen Celeron Elkhart Lake J6412 Firewall Mini PC

Item Description

Model: K10821G5-S08

CPU: Intel 10th Gen Elkhart Lake, Celeron J6412 Quad Core, 2.0GHz-2.6GHz, 1.5M Cache, Intel UHD Graphics, AES-NI

CPU TDP: 10W

Memory: 1 x DDR4L SO-DIMM Socket (Up to 32G, 2133/2400MHz)

Storage: 1 x M key M.2 for SSD (2280, PCIe 3.0 x1), 1 x 2.5 inch HDD/SSD, 1 x Mini PCIe for mSata SSD

Audio: No

LAN Chipset: 5 x Intel I225-V/I226-V 2.5 Gigabit LAN

OS Support: UEFI Windows 10, UEFI Linux etc.

Item Size: 155 x 127 x 48mm

Cooling Mode: Fanless

Material: Aluminum Alloy

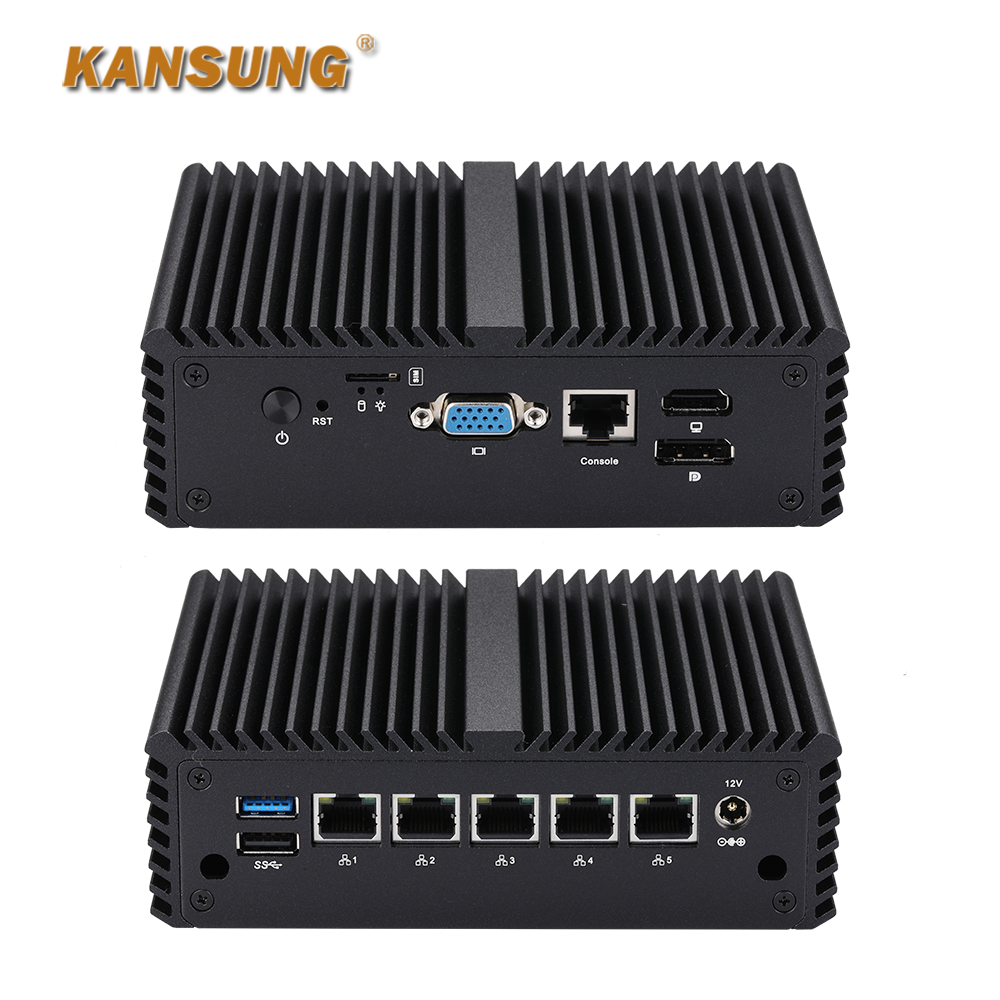

Connectors

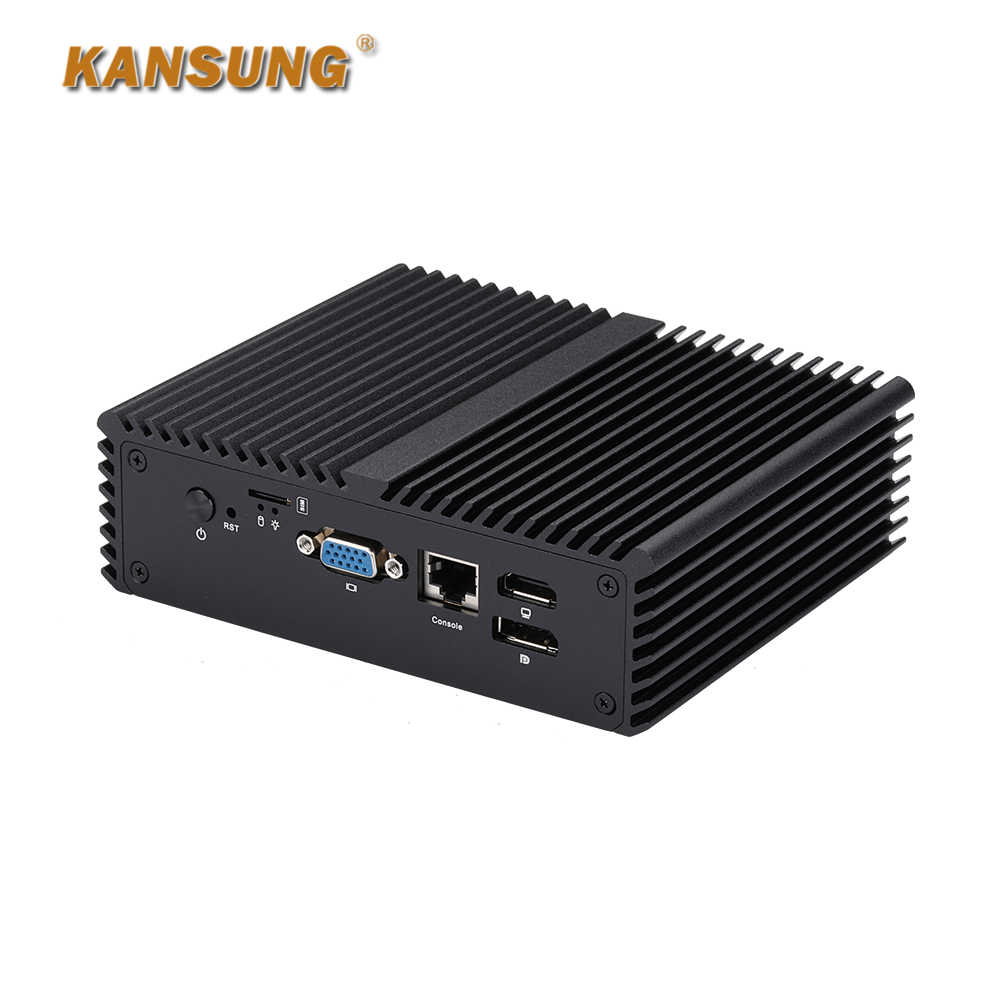

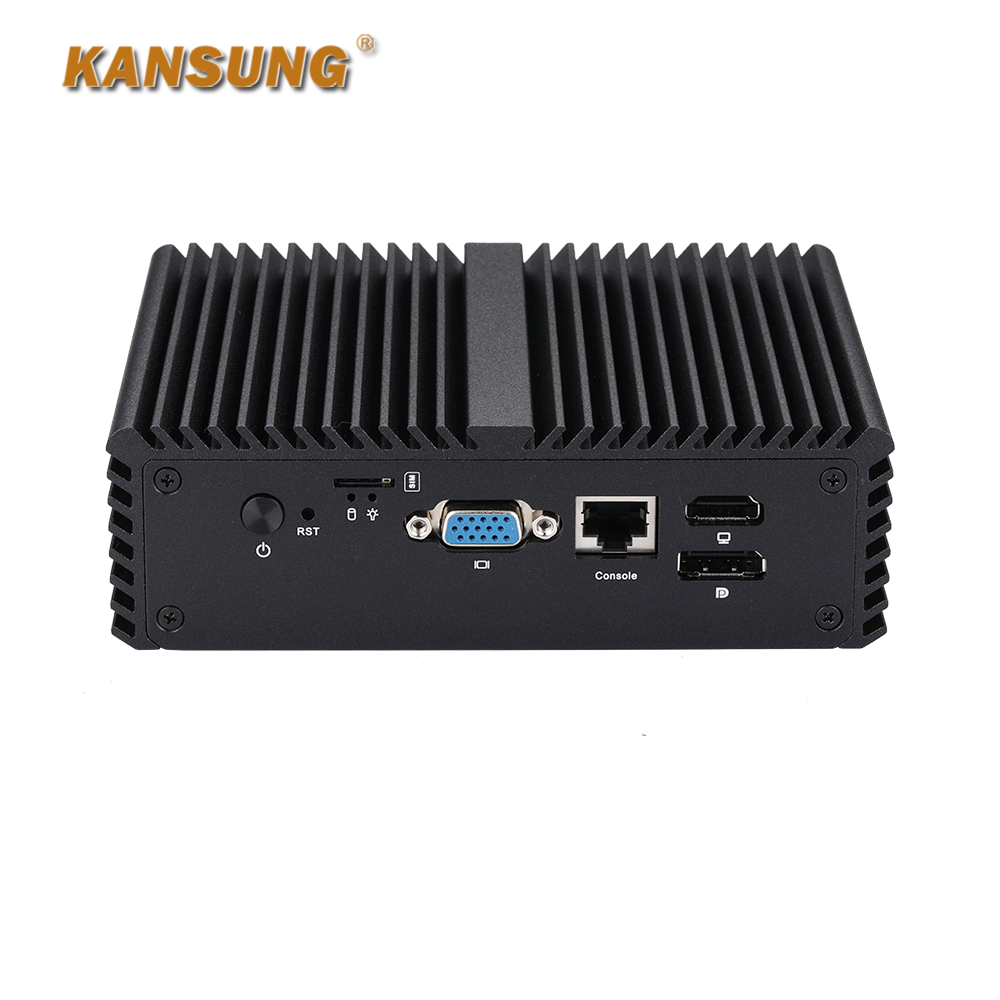

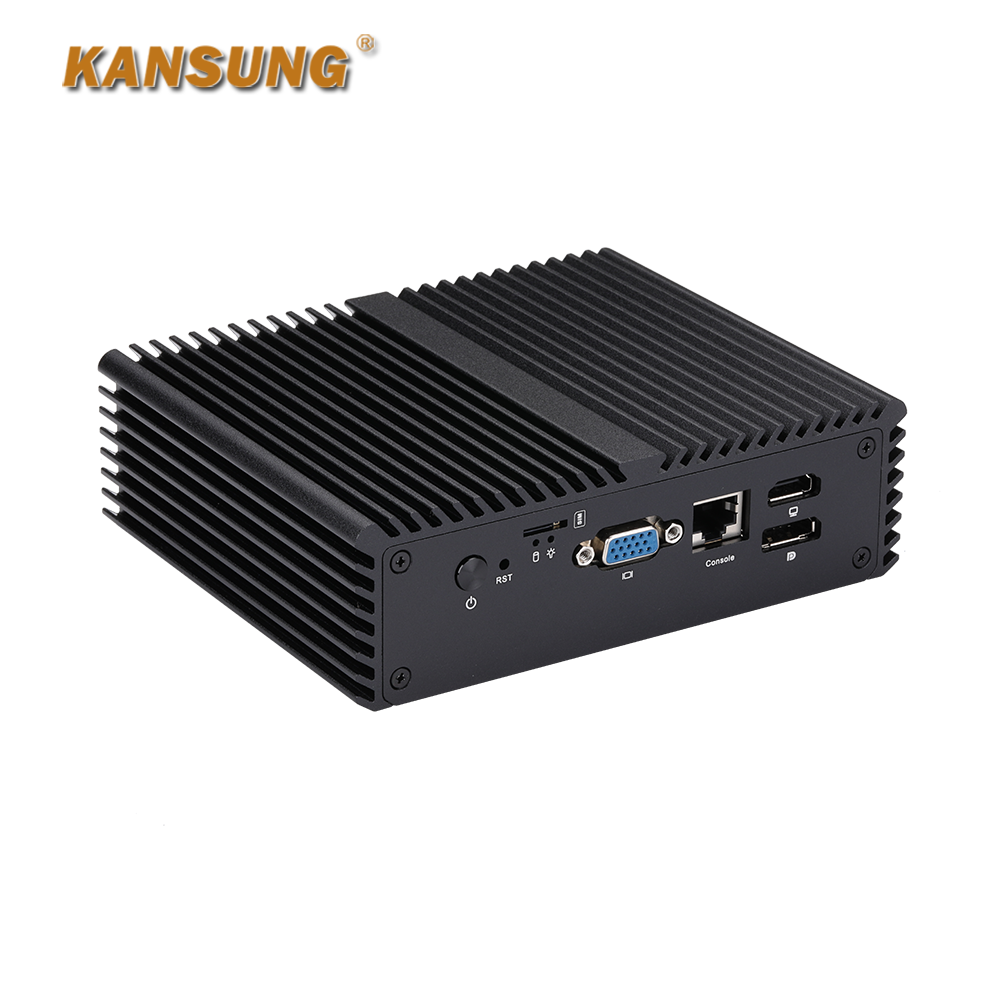

Front Port

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x HD, 1 x Display Port, 1 x VGA
• 1 x RS-232 Port (RJ-45)
• 1 x SIM Card Slot

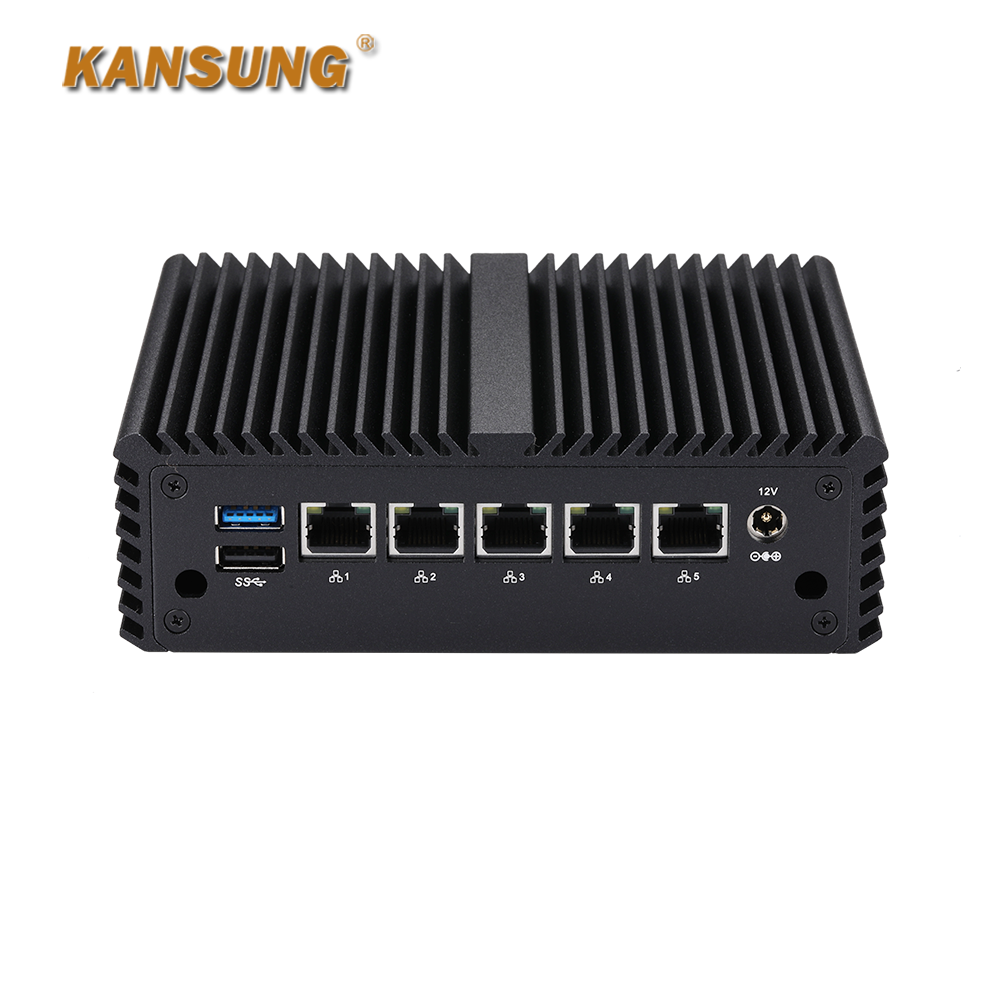

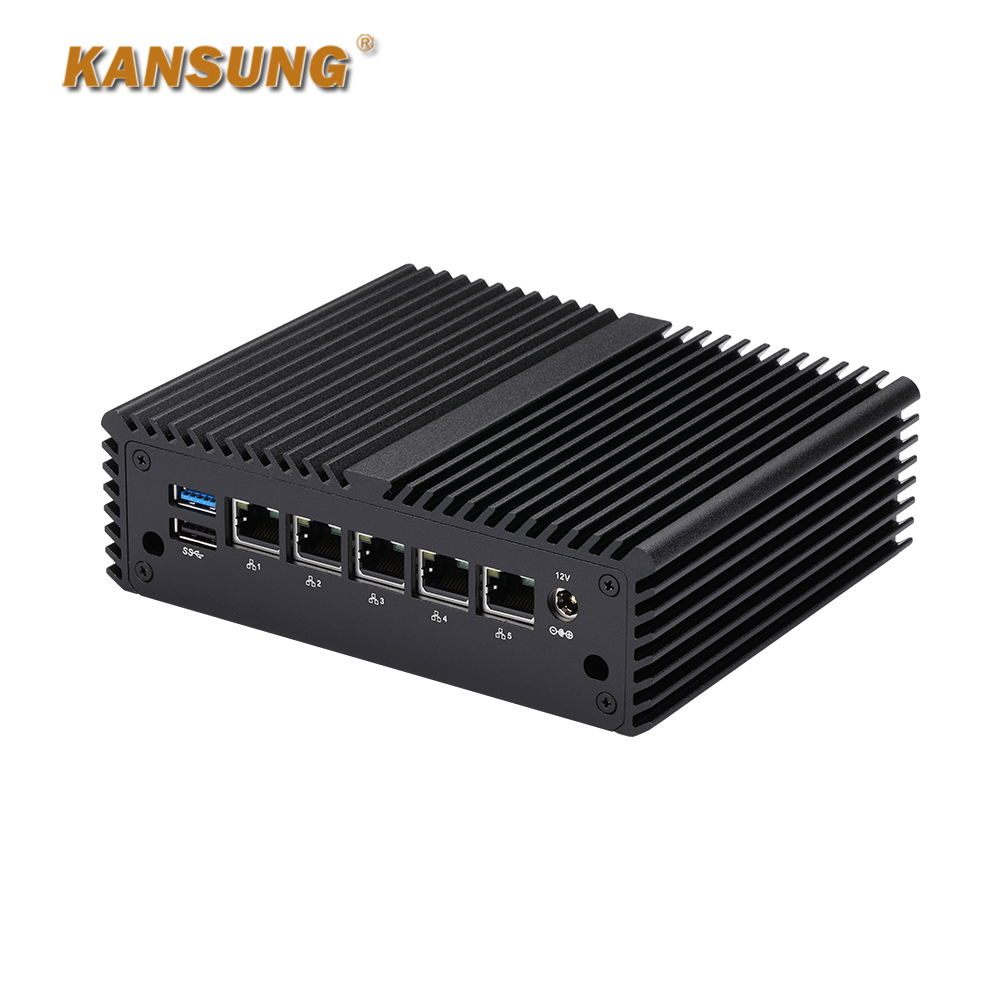

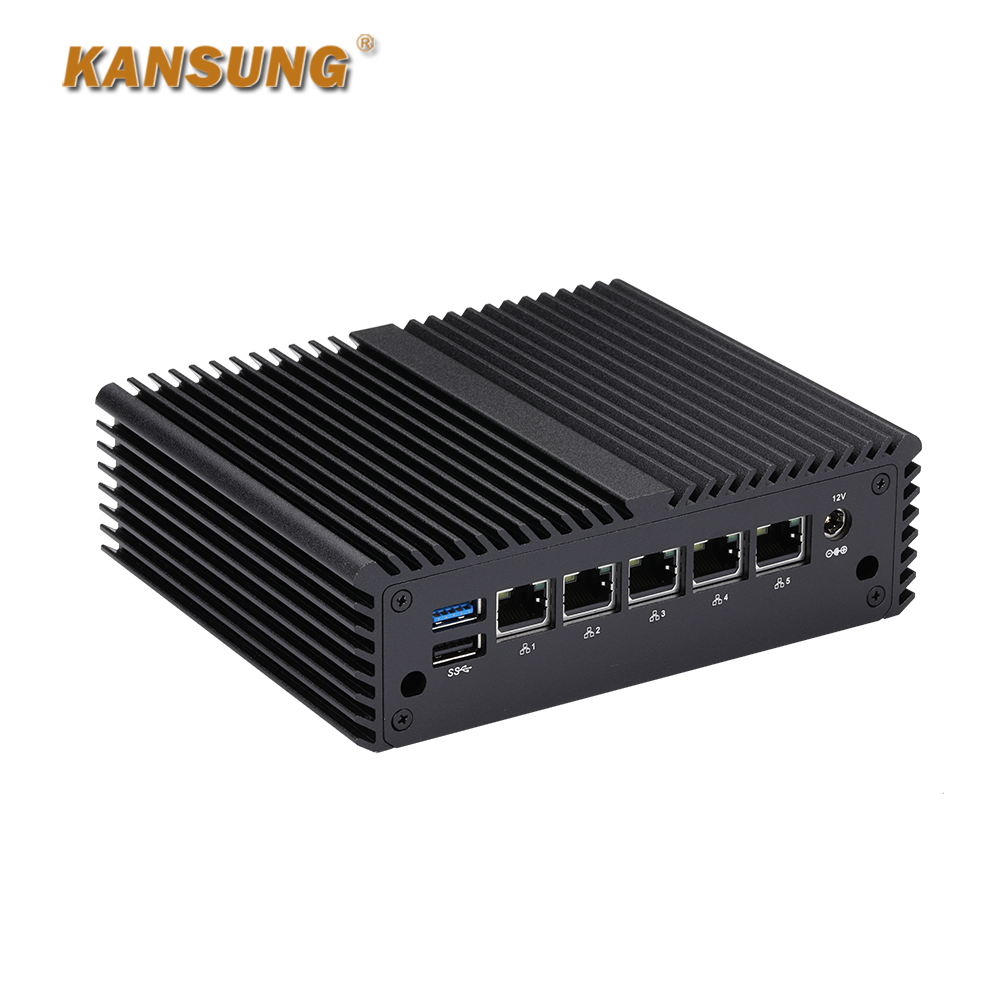

Back Port

• 1 x 12V DC Power Jack
• 5 x RJ-45 Port for Intel 2.5G LAN
• 1 x USB 3.0, 1 x USB 2.0

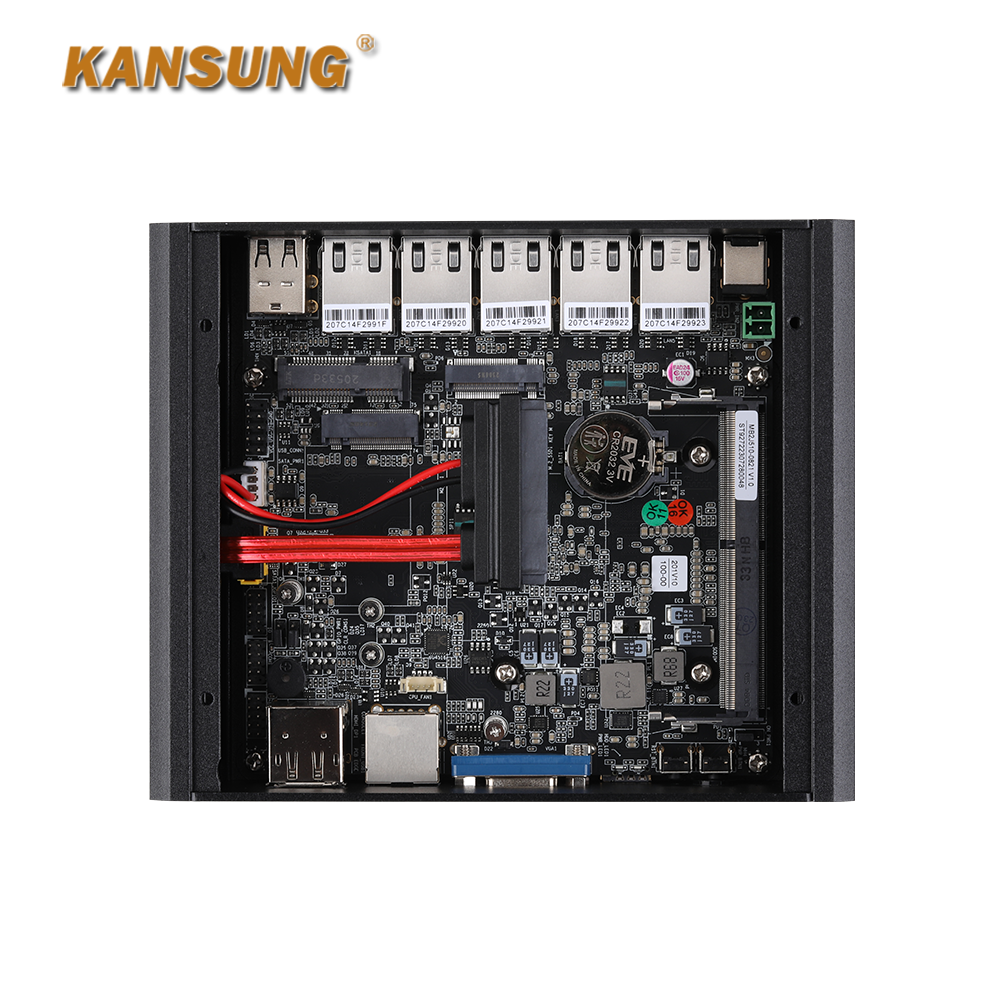

Expansion

• 1 x mSatafor SSD
• 1 x M.2 for 4G/5G (B Key, 3042/3052)
• 1 x M.2 for SSD (M Key, 2280, PCIe 3.0 x1)
• Wi-Fi support via a Converter Card
• 1 x GPIO (2 x 5Pin, Pitch 2.0mm)
• 1 x Clear COMS Jumper (1 x 3Pin, Pitch 2.54mm)
• 1 x Auto Start Jumper (1 x 3Pin, Pitch 2.54mm)
• 1 x Front Panel (2 x 5Pin, Pitch 2.0mm)

Operating System

Windows 10 (unactivated & not licensed ) was pre-installed for test by default.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

Packing List

• 1 x Mini PC
• 1 x Power Adapter
• 1 x Power Plug (Type based on buyer's country)
• 1 x VESA Mount Bracket & Screws
