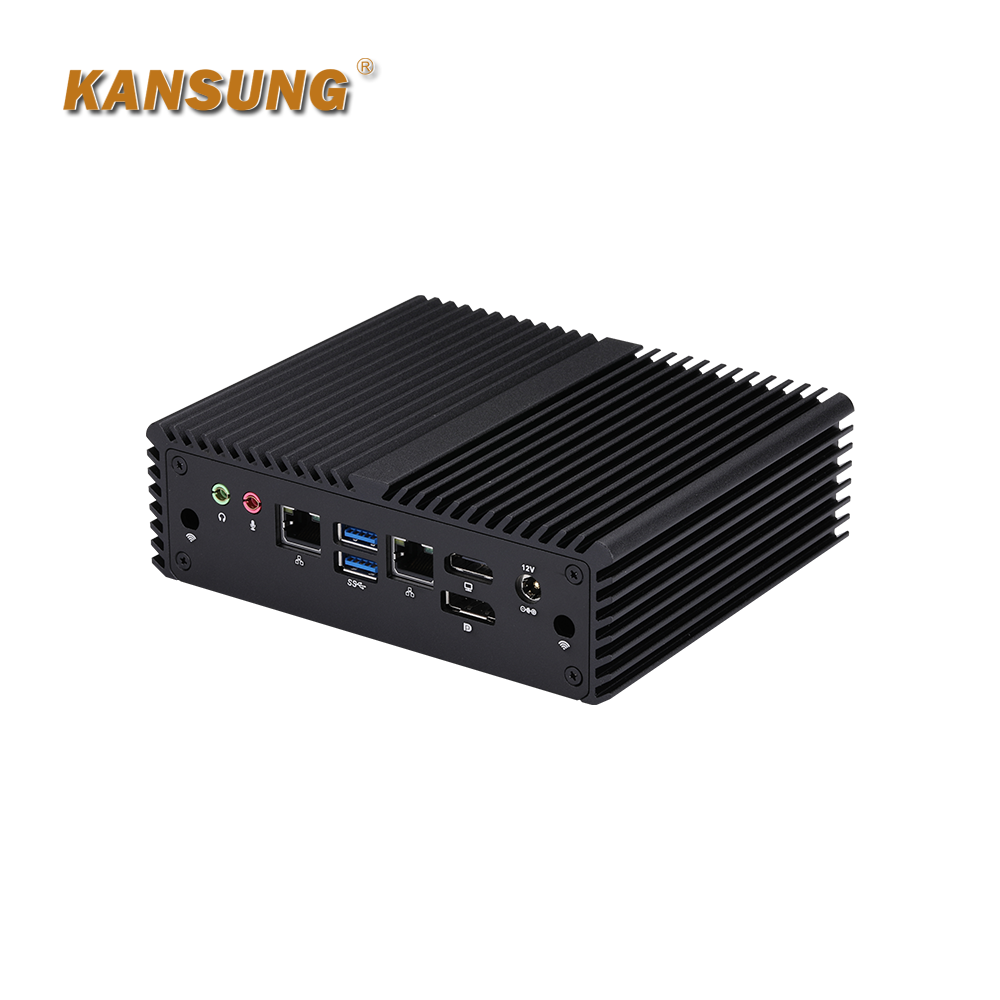

10th Gen Celeron 5205U 2 x 2.5 Gigabit 4 x COM Industrial Mini PC

Item Description

Model: K31011P-S08

CPU: Intel 10th Comet Lake, Celeron 5205U Dual Core, 1.9GHz, 2M Cache, Intel UHD Graphics, AES-NI

CPU TDP: 15W

Memory: 1 x DDR4L SO-DIMM Socket (Up to 32G, 2133/2400MHz)

Storage: 1 x M key M.2 (2280mm) for SSD, NON-Support SATA

WiFi: M.2

Audio: Realtek HD Audio

LAN Chipset: 2 x Intel I225-V/I226-V 2.5 Gigabit LAN

OS Support: Windows 10, Linux etc.

Item Size: 155 x 127 x 48mm

Connectors

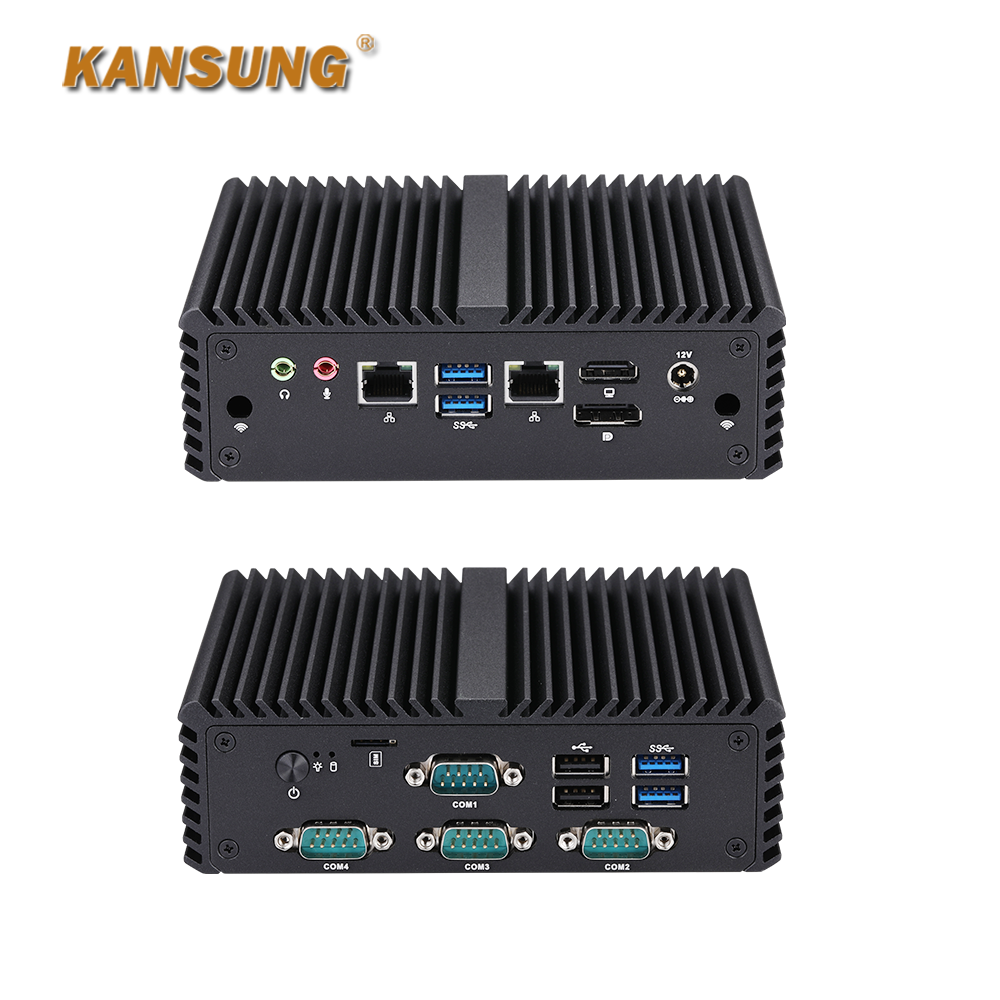

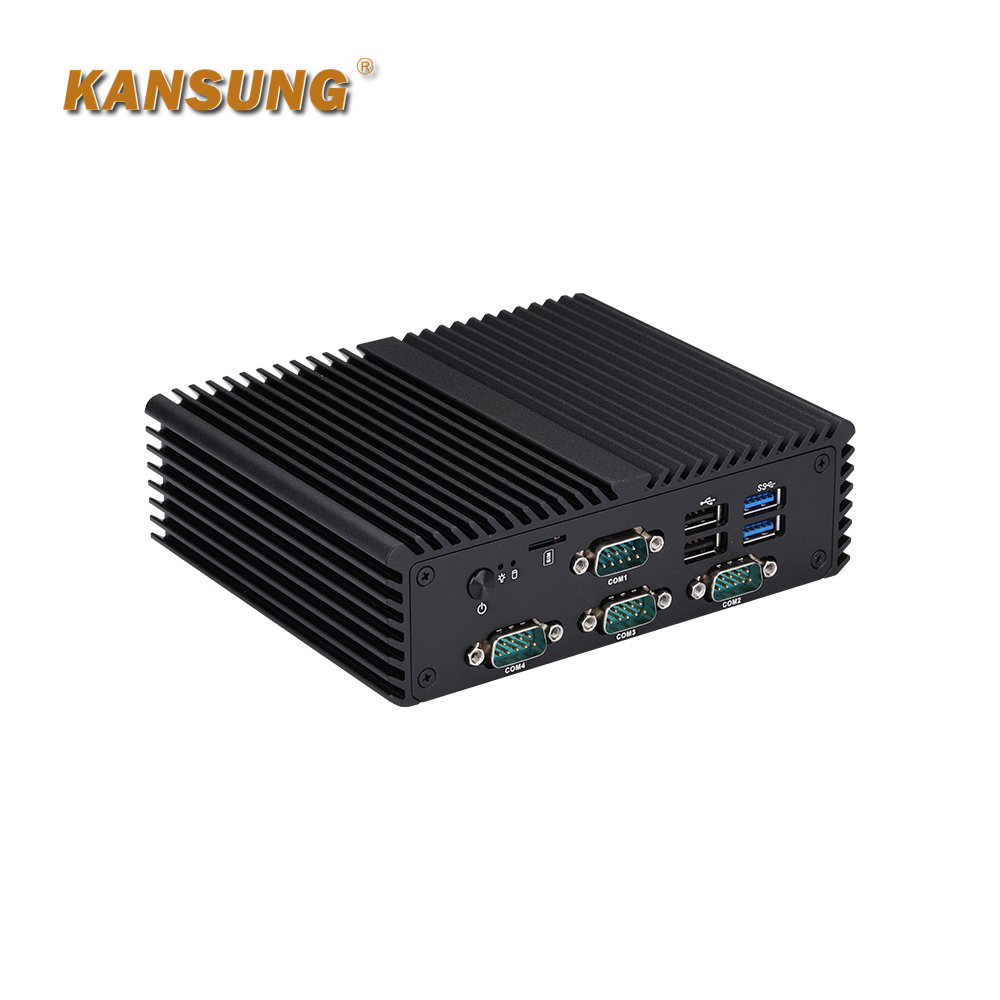

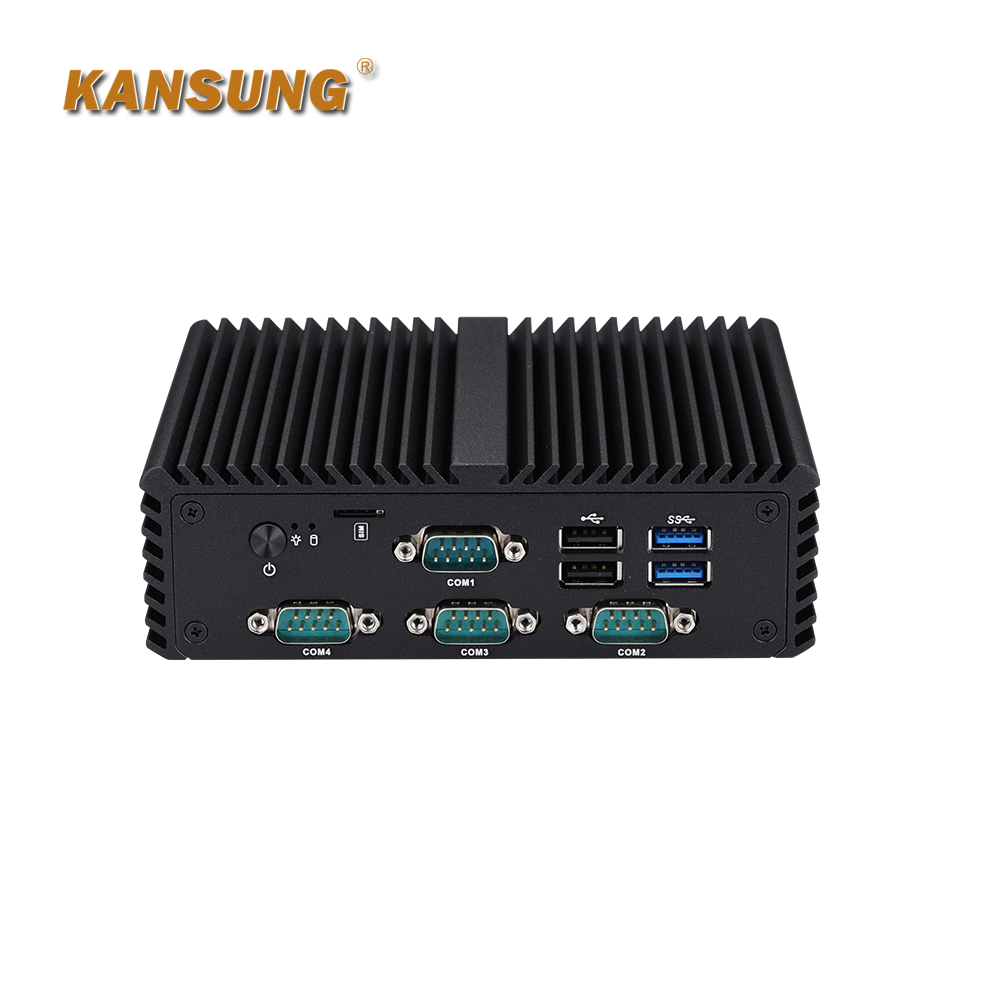

Front Port

• 1 x Power Button
• 1 x Power LED, 1 x HDD LED
• 2 x USB 2.0, 2 x USB 3.0
• 4 x RS-232
• 1 x SIM Card Slot

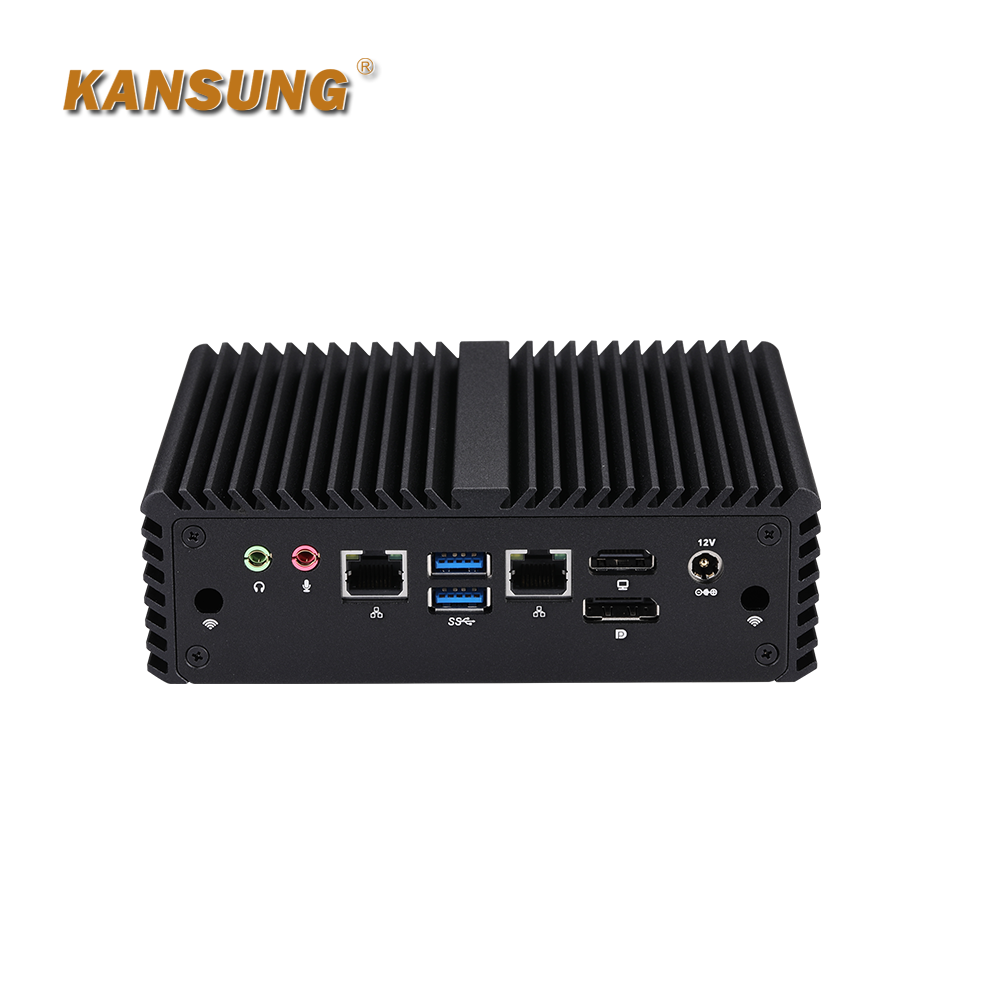

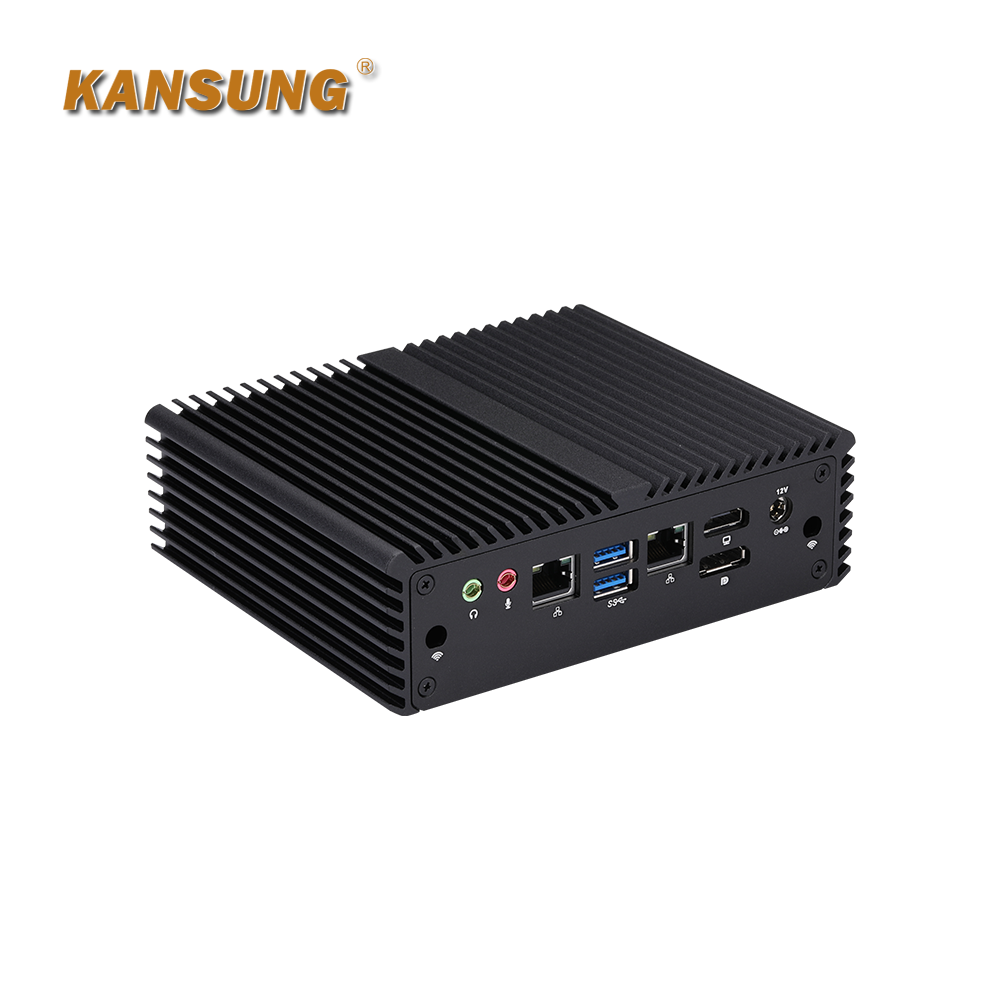

Back Port

• 1 x 12V DC Power Jack
• 1 x DP, 1 x HD
• 2 x RJ-45 Port for 2.5G LAN
• 2 x USB 3.0
• 2 x Audio (Mic-in, Line-out)

Expansion

• 1 x M.2 for 4G (B key, Type: 3042/3052)
• 1 x M.2 for SSD (M key, 2280)
• 1 x M.2 for Wi-Fi (E key, 2230)
• 1 x AutoStart Jumper (1 x 3Pin, Pitch 2.0mm)
• 1 x CMOS Clear Jumper (1 x 3Pin, Pitch 2.0mm)
• 1 x GPIO (2 x 5Pin, Pitch 2.0mm)

Operating System

Windows 10 (unactivated & not licensed ) was pre-installed for test by default.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

Packing List

• 1 x Mini PC
• 1 x Power Adapter
• 1 x Power Plug (Type based on buyer's country)
• 1 x VESA Mount Bracket & Screws
