4 Gigabit LAN BayTrail J1900 Firewall Mini PC

Item Description

Model: K190G4N-S08

CPU: Intel Celeron BayTrail SOC J1900 Quad Core Processor, 2.0GHz-2.42GHz, 2M Cache, Intel HD Graphics 500

CPU TDP: 10W

Memory: 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)

Storage: 1 x 2.5 inch HDD/SSD, 1 x Mini PCIe for mSata SSD

Audio: No

LAN Chipset: 4 x Intel I210-AT/I211-AT Gigabit LAN

OS Support: Windows 10, Linux etc.

Item Size: 156 x 127 x 48mm

Cooling Mode: Fanless

Material: Aluminum Alloy

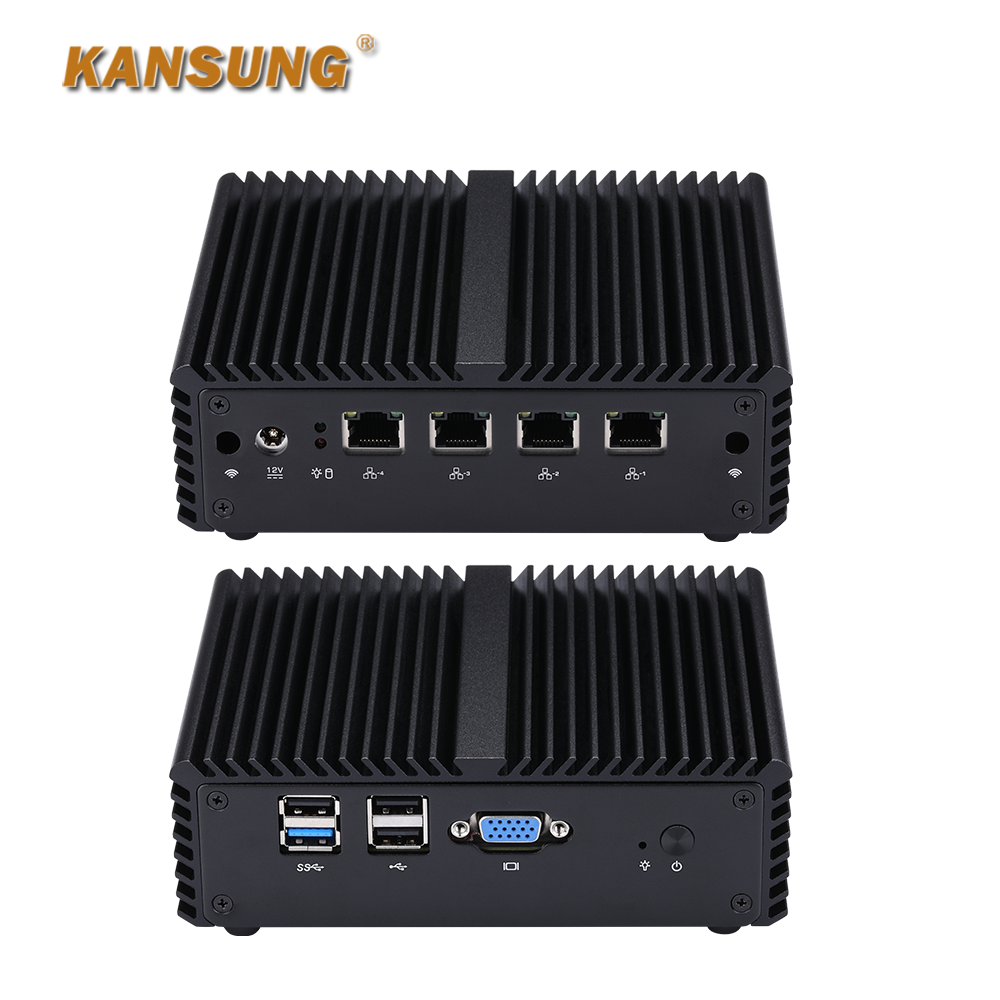

Connectors

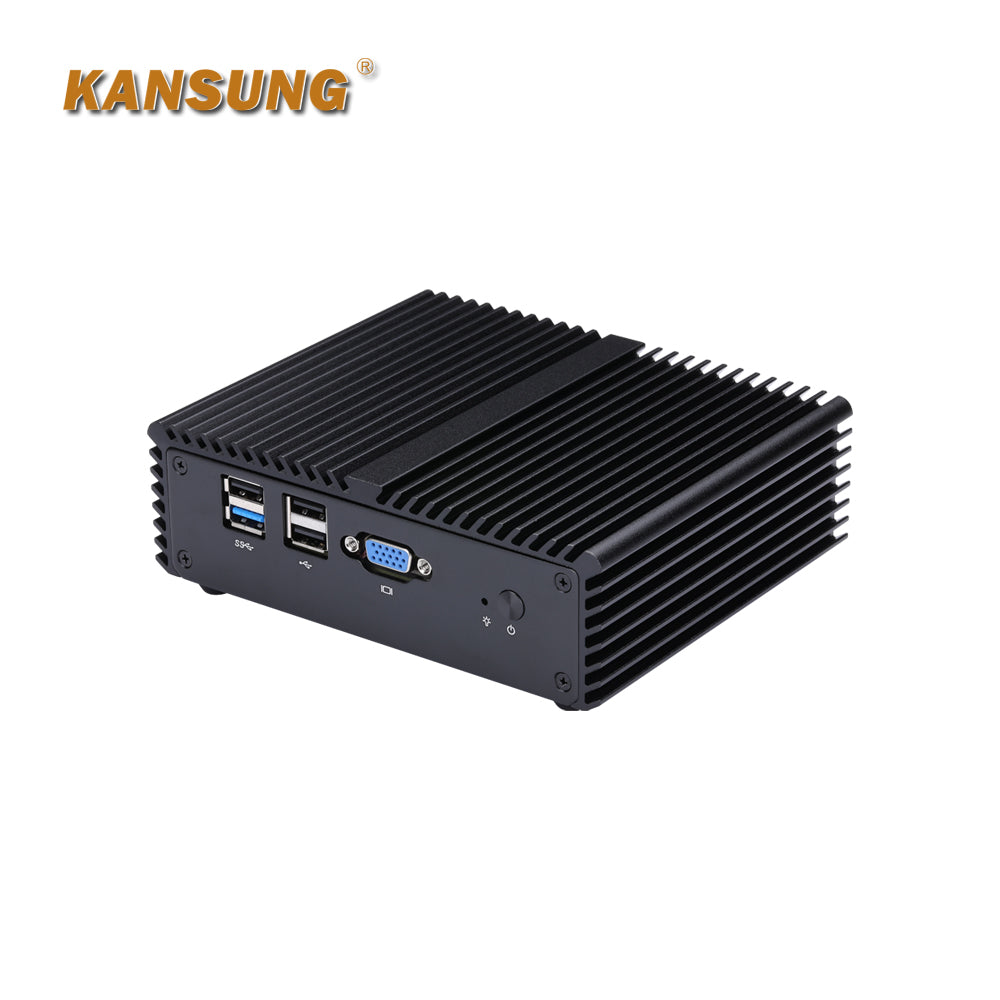

Front Port

• 1 x Power Button
• 1 x Power LED
• 1 x USB 3.0, 3 x USB 2.0
• 1 x VGA

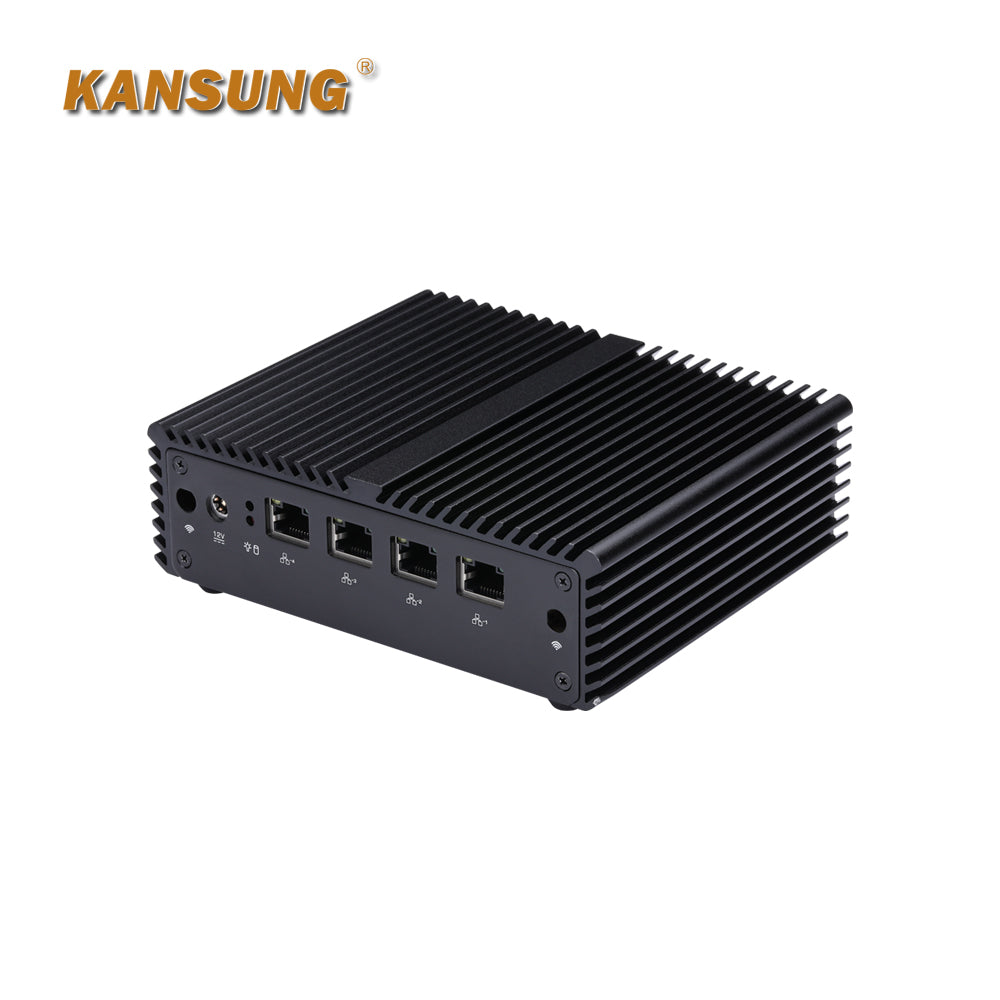

Back Port

• 1 x 12V DC Power Jack
• 1 x Power LED, 1 x HDD LED
• 4 x RJ-45 Port for Gigabit LAN

Expansion

• 1 x Full Length Mini-PCIe for mSATA SSD

• 1 x Mini-PCIe (Full-length for 4G, or Half-length for WiFi <Default only support USB Device>)
• 1 x SIM Card Slot
• 1 x Automatically Boot Jumper (1 x 3Pin, Pitch 2.54mm)

Operating System

Windows 10 (unactivated & not licensed ) was pre-installed for test by default.

BIOS Support

Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

Logo Service

LOGO printing is free, just provide your logo document if any need.

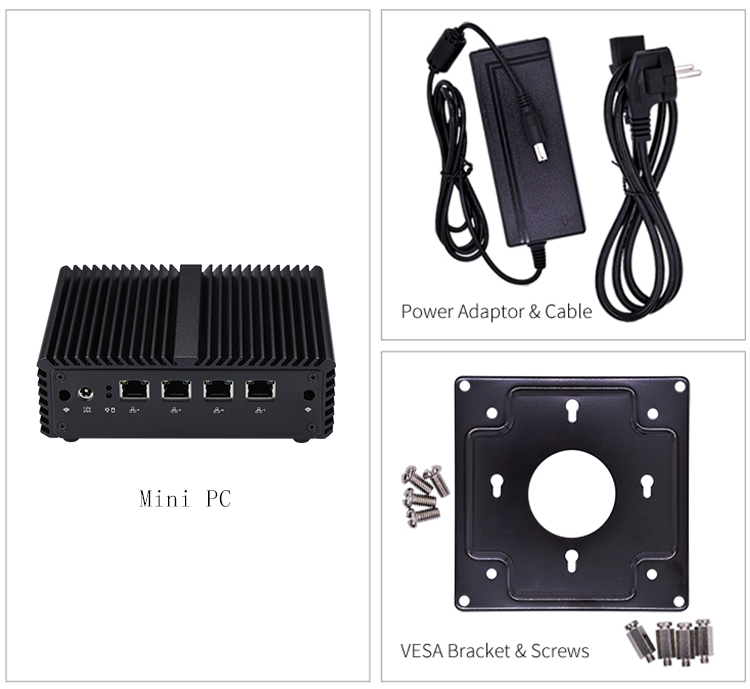

Packing List

• 1 x Mini PC
• 1 x Power Adapter (12V 3A)
• 1 x Power Plug (Type based on buyer's country)
• 1 x VESA Mount Bracket & Screws
